JPT MOPA M7 Fiber Laser Engraver Laser Marking Machine 20W/30W/60W
- Laser Source JPT MOPA M7
- Laser Power 20W/30W/60W Optional
- Repetition Frequency 1~4000Khz
- Pulse Duration 2-350ns@20W/30W; 2-500ns@60W.
- Lens(Marking Area) 110*110/150*150/175*175mm
- Output power adjustment range 10%-100%
- Marking Speed 7m/s
- Engraving Depth ≤1.0mm
- Min. Line Width ≤0.01mm
- Min. Character 0.2mm
- Input Voltage 110V-240V/50-60Hz
- Communication Mode for Automation TCP/IP, IO,RS232
-
Fiber Laser Engraver Fiber Laser Marking Machine 20W/30W/50W
- Laser Source JPT
- Laser Power 20W/30W/50W Optional
- Lens(Marking Area) 110*110/150*150/175*175mm
- Output power adjustment range 10%-100%
- Marking Speed 7m/s
- Engraving Depth ≤1mm
- Min. Line Width ≤0.01mm
- Min. Character 0.2mm
- Input Voltage 110V-240V/50-60Hz
- Communication Mode for Automation TCP/IP, IO,RS232
- Applicable OS WIN7/8/10
-

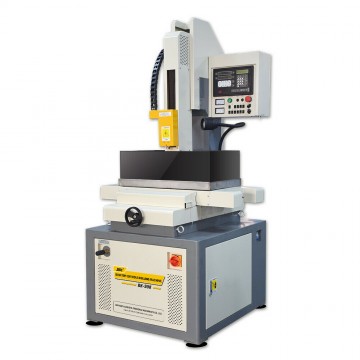

DK-908 EDM Drilling Machine Ø0.3-3mm Manual Lifting(Basic Model)
- Working Fluid Supply Device Electrical Plunger Pump
- Maximum Working Fluid Pressure 7 Mpa
- Rotating Head (C-axis) Speed 0~500 rpm
- Maximum Input Voltage 3*AC380/240V
- Digtal Display Mode Two-axis
- Electrode Diameter(mm) 0.3-3
- Spindle(Z-axis) Maximum Speed 750 mm/min
- Maximum Input Power 3.3 KVA
- Maximum Working Current 30A
-
EDM-2000B Portable EDM Broken Tap Remover
- Items EDM-2000B
- Input Voltage (V) AC220V/110V 50Hz
- Output Voltage (V) DC 75-80V
- Electrode Diameter (mm) 0.8-10
- Max Travel of Work Head (mm) 70
- Max Processing Speed (mm/min) 1.5
- Machine Size (L*W*H mm) 420*220*370
- Work Head Size (L*W*H mm) DK8 300*50*50
- Net Weight (Kg) 19
-
Portable EDM Drilling Machine MB-2000C Ø0.5-3mm
- Rough Weight (kg) 75
- Input Power (W) 1500
- Maximum Processing Depth (mm) 300（Φ1）
- Power Box(mm) L520×W260×H390（22kg）
- Work Head L400×W160×H650 (22.75Kg)
- Water Pump Size(mm) L470×W285×H580（17.5kg）
- Power Box Input Voltage (V) AC220V 50Hz/AC110V 60Hz
- Electrode Diameter(mm) 0.3-3
- Spindle Servo Travel 320
- Manual Travel (mm) 200
-
EDM-8C Portable EDM Broken Tap Remover
- Items EDM-8C
- Input Voltage (V) AC220V/110V 50Hz
- Input Power (W) 800W
- Output Voltage (V) DC 75-80V
- Electrode Diameter (mm) 1-10
- Max Travel of Work head(mm) 70
- Max Processing Speed (mm/min) 1mm/min
- Machine Size (L*W*H mm) 380*160*300
- Work Head Size (L*W*H mm) DK8 300*50*50
- Net Weight (Kg) 16
-
SFX-4000B Portable EDM Broken Tap Remover
- Items SFX-4000B
- Input Voltage (V) AC220V/110V 50Hz/60Hz
- Input Power (W) 3000W
- Output Voltage (V) DC 75-80V
- Electrode Diameter (mm) 2-13
- Max Travel of Work Head (mm) 70
- Max Processing Speed (mm/min) 2mm/min
- Machine Size (L*W*H mm) 420*220*370
- Work Head Size (L*W*H mm) DK8 300*50*50
- Net Weight (Kg) 22
