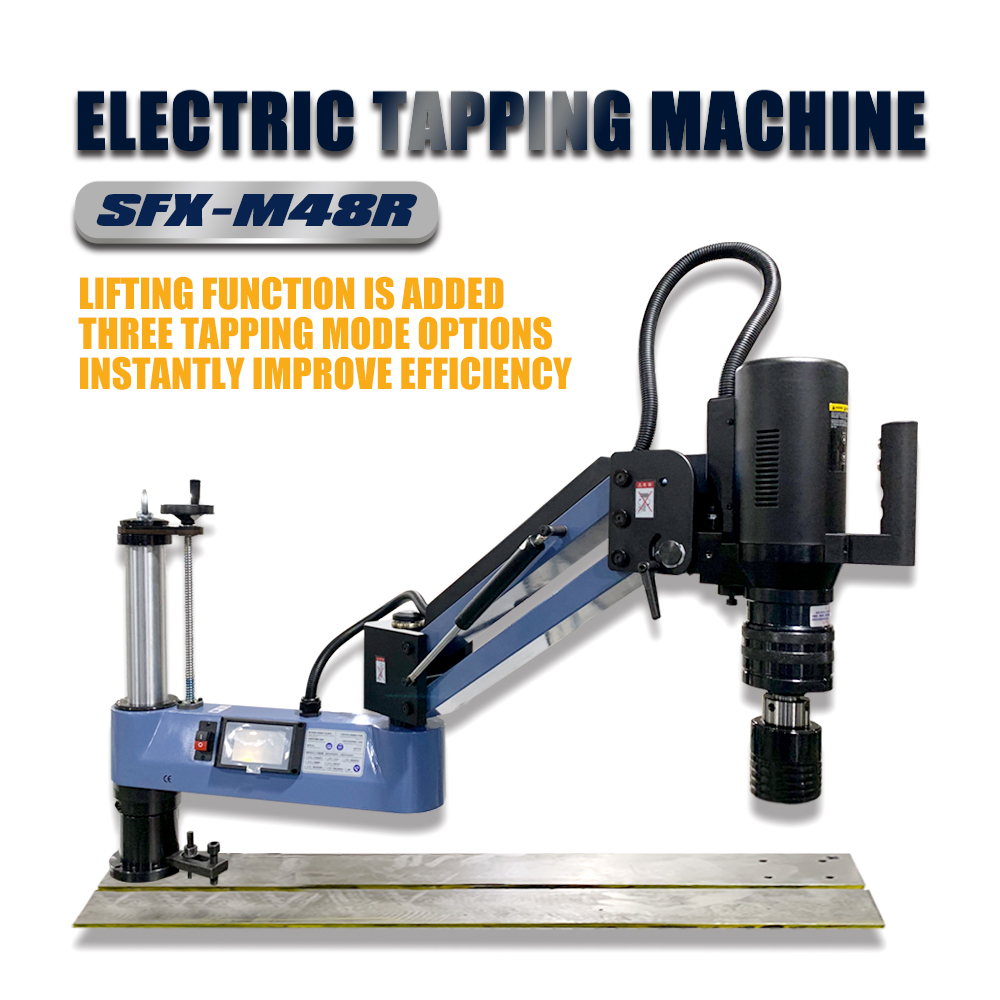

SFX-M48R M12-M48 Electric Tapping Machine Arm 360° Universal Tapping
SFX-M48R M12-M48 Electric Tapping Machine, Factory Direct Sale Competitive Price

SFX-M48R M12-M48 Electric Tapping Machine Arm 360° Universal Tapping

  • Model SFX-M48R
  • Voltage 110V/220V
  • Rated Power 1200W
  • Spindle Speed 50-200r/min
  • Tapping Range M12-M48
  • Tapping Direction Universal
  • Machine Size 1200*1020*240mm
  • Gross Weight 125kg


Features and Advantages:

1. Tapping Ability: Steel: M12-M48 Aluminum: M12-M56 Stainless steel: M12-M48

2. Working Area Horizontal: 1300mm(51.2inch)  Vertical: 400mm adjustable Lifting Function is Added

3. Standard Accessories: Tapping Arm (One Set)  Servo Motor And Reducer ( One Set). Tap Holder M12-M48 (One Set) Universal Joint (Tapping For a Vertical/Horizontal )

4. Optional Accessories:Magnetic Base 600KG (Tapping An Arbitrary Range) Moving Workbench (Mobile Tapping Machine )

5. Applicable Materials: Aluminum, Copper, A3 steel, 45 steel, Cast Iron, Pig Iron, Q235, S136, mold steel, 718H, 40Cr, Stainless Steel and other metal materials

6. Three Tapping Mode: Manual Tapping, Automatic Tapping, Deep Hole Intermittent Tapping

7. HD human-machine interface. Adjustable forward and backward speed. Imported servo motor and strong output.

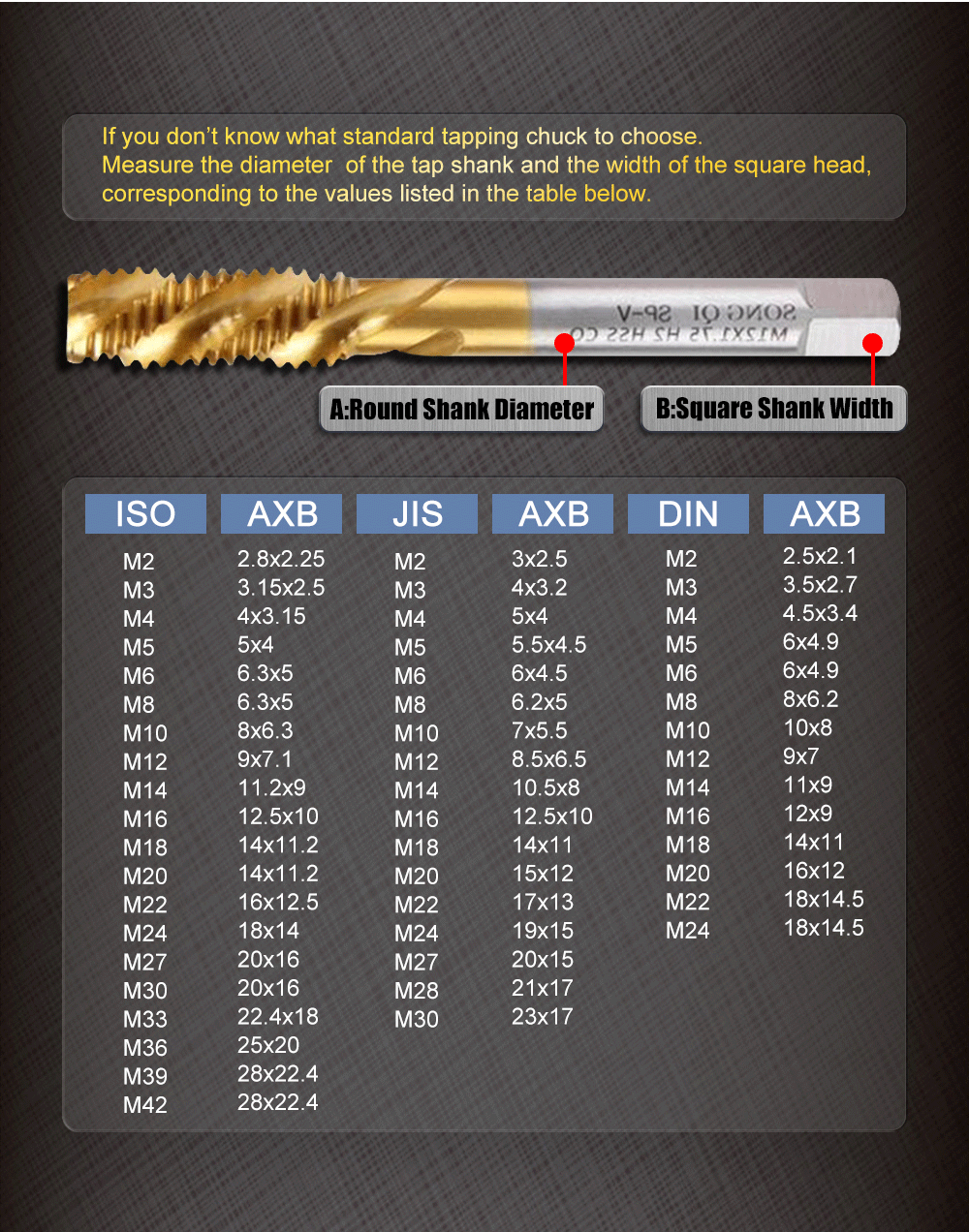

8. Three Standard Tapping Chucks: ISO, JIS, DIN for Optional. ISO is the Default Standard

ISO Standard: M12  M14  M16  M18-M20  M22  M24  Conversion Chuck(45-31)  M27-M30  M33  M36  M40  M42  M45-M48 (13PCS in Total)

JIS Standard: M12  M14  M16  M18  M20  M22  M24  Conversion Chuck(45-31)  M27  M30  M33  M36  M40  M42  M45  M48(16PCS in Total)

DIN Standard: M12  M14  M16  M18  M20  M22-M24 Conversion Chuck(45-31)  M27  M30 M33  M36  M40  M42  M45  M48(15PCS in Total)

9. 1-year warranty. Free shipping to your door by DHL or UPS. No additional cost.A5攻丝机M48主图1L0130Y【待审】A5攻丝机M36R详情图L0129Y_02【待审】A5攻丝机M36R详情图L0129Y_04D-_桌面_M48R攻丝机详情_【定稿】A5攻丝机详情图L0320Y_09_02Print【定稿】A5攻丝机详情图L0320Y_10
