EDM-2000B Portable EDM Broken Tap Remover
New Arrival Model EDM-2000B New model of SFX Brand.

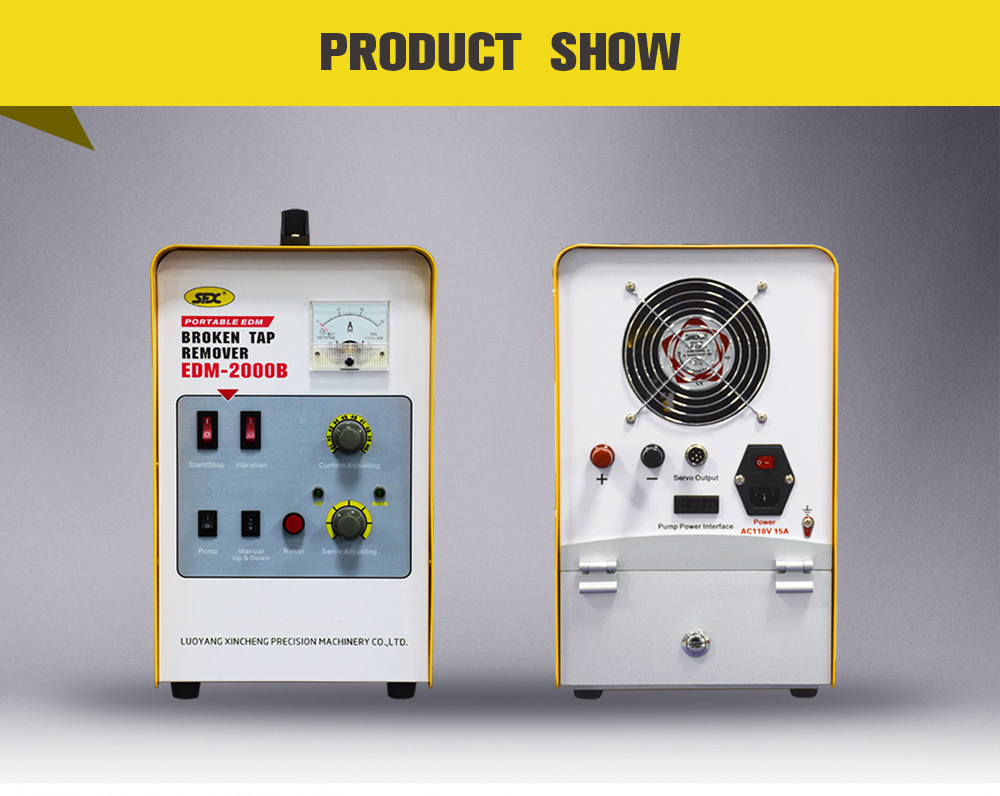

EDM-2000B Portable EDM Broken Tap Remover

  • Items EDM-2000B
  • Input Voltage (V) AC220V/110V 50Hz
  • Output Voltage (V) DC 75-80V
  • Electrode Diameter (mm) 0.8-10
  • Max Travel of Work Head (mm) 70
  • Max Processing Speed (mm/min) 1.5
  • Machine Size (L*W*H mm) 420*220*370
  • Work Head Size (L*W*H mm) DK8 300*50*50
  • Net Weight (Kg) 19


EDM-2000B Portable EDM Broken Tap Remover (Depth Setting)


1. Input power 2000W

2. Light, small, portable, and compact design allows the EDM-2000B tap remover to be moved and used anywhere in the shop.

3. High speed and efficiency at a low cost.

4. Simple set up and operation allows easy removal of taps anywhere.

5. Power source choices 110V/220V,50/60Hz

6. Dielectric Machine uses ordinary tap water as dielectric liquid.

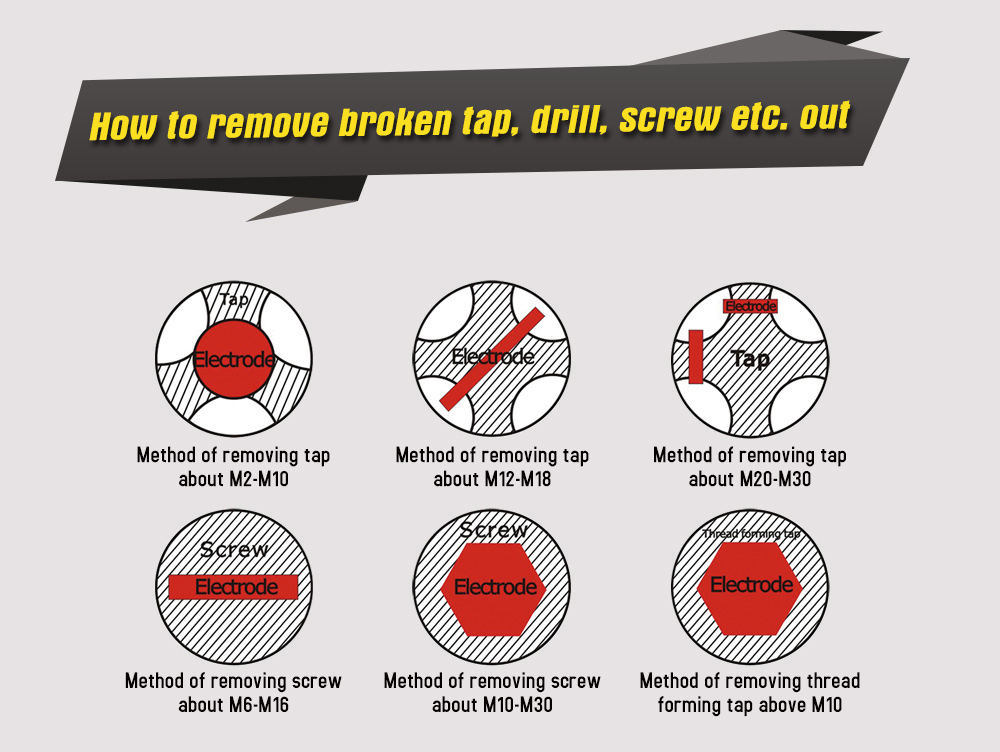

7. Electrodes Uses any brass rod or tube as an electrode.(ø1,ø2,ø3,ø4,ø5,ø6,ø8,ø9,ø10)

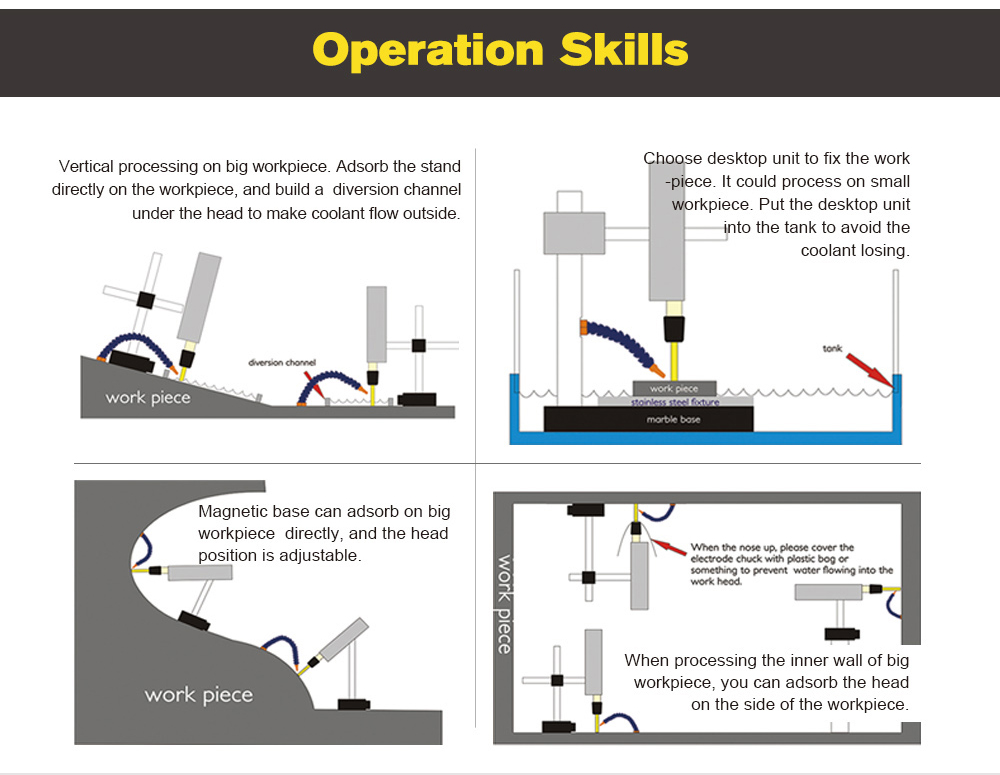

8. Small size and magnetic base allow machining even on large work pieces.

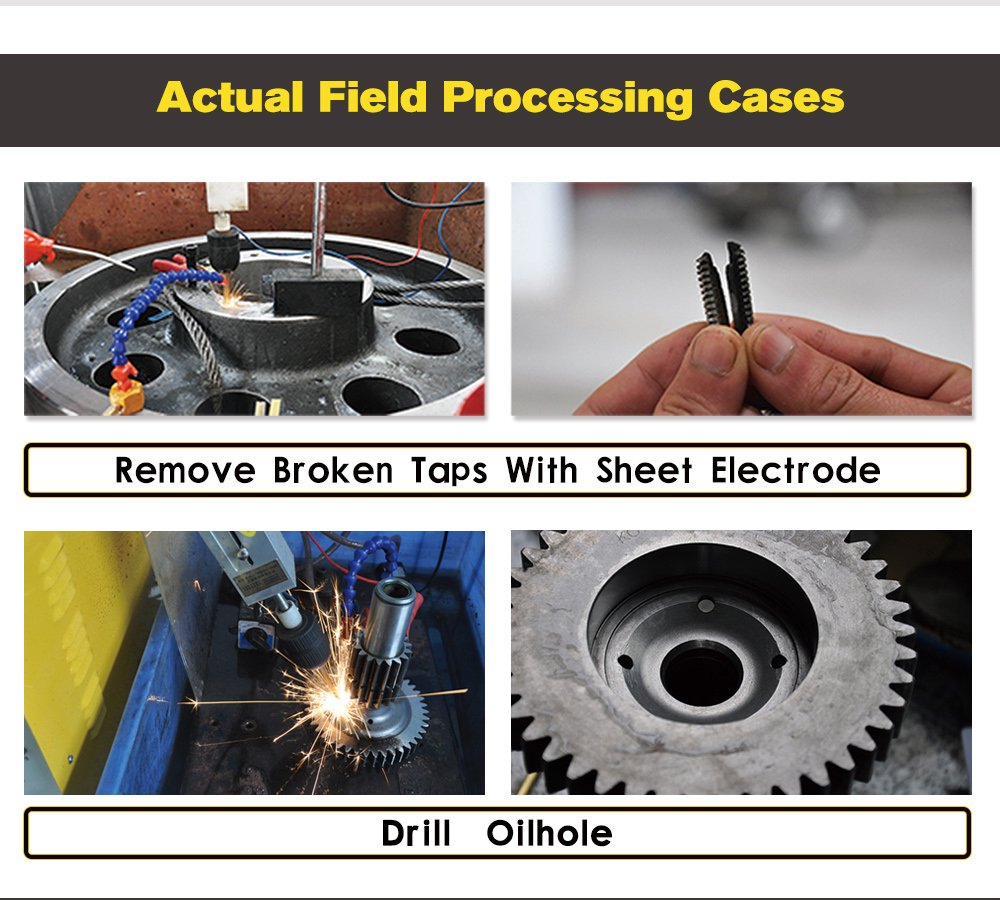

9. Removes taps with no damage or stress to the work piece.

10. Additional applications include cutting tungsten carbide or any other conductive material

Machining Functions:

1. Auto Feed

2. Depth setting (stops at a specific depth)

3. Selectable arcing timer

4. Auto retract

5. Swiveling work head

6. Alarm messages: depth arrival, arcing, over-temp.

7. Manual Up& Down for Positioning.

8. One-key Start&Stop

1 year warranty for portable EDM broken tap remover. Offer lifetime online technical support.

US Stock in NJ and CA Warehouse, Free Shipping to your door about 3-7 days. USA after sales center. CE, ISO & FDA certificate.
