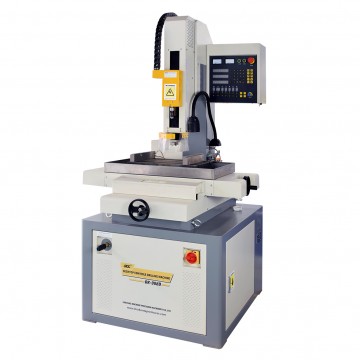

DK-908D EDM Drilling Machine Ø0.3-3mm Depth Setting&One-Key Processing

DK-908D EDM Drilling Machine Ø0.3-3mm Depth Setting&One-Key Processing

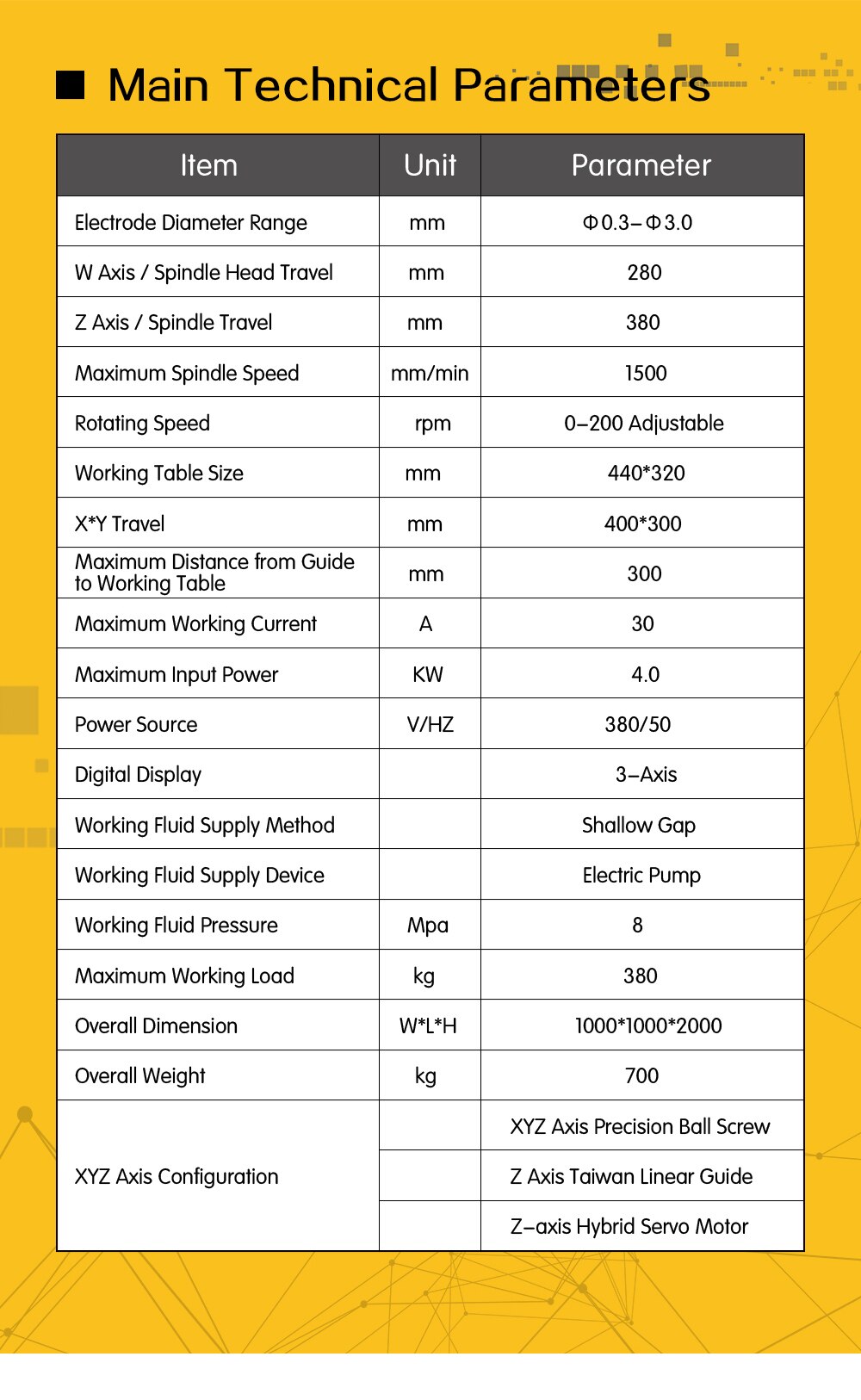

  • Electrode Diameter Range 0.3-3mm
  • W Axis 280mm
  • Z Axis 380mm
  • Max. Spindle Speed 1500mm/min
  • Rotating Speed 0-200rpm
  • X*Y Travel 400*300mm
  • Work Table Size 440*320mm
  • Max. Distance between Guide and Table 300mm
  • Max. Working Current 30A
  • Max. Input Power 4000W
  • Power Source 380V/50Hz or 240V/60Hz
  • Max. Load 380KG
  • Overall Dimension 1000*1000*2000mm
  • Net Weight 700Kg

Details

DK-908D EDM Drilling Machine Ø0.3-3mm Depth Setting and One-Key Processing

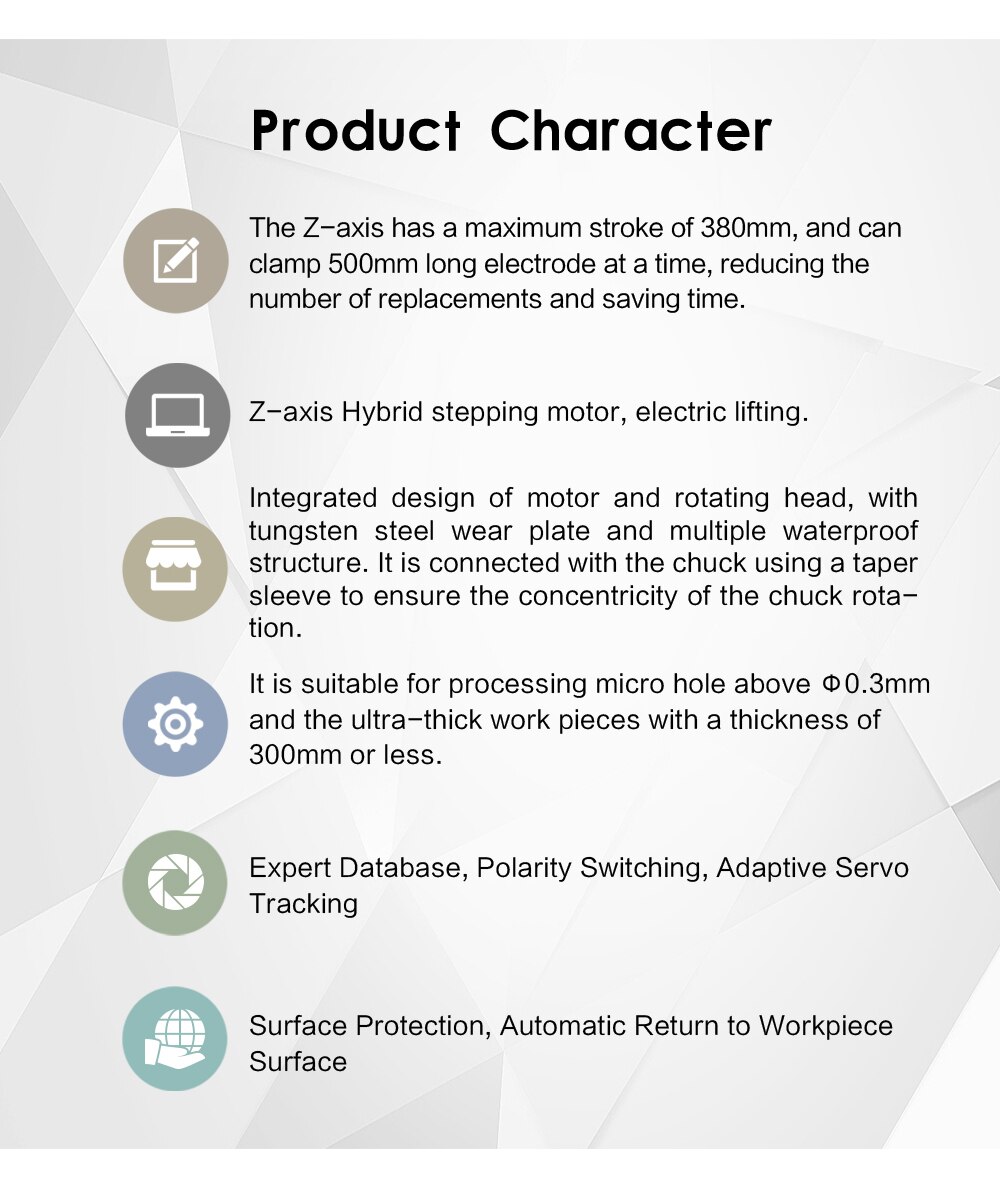

Superior Features:

1. One-Key Processing.

2. Depth Setting.

3. End Face Positioning.

4. Expert DataBase for Different Materials.

5. Digital Sampling Function.

6. Adaptive Servo Tracking System.zhijing

7. Drill Through Function.

8. Flexible Machining&High Speed Machining Mode.

9. Auto Retract when Processing Finished.






【定稿】外贸DK-908D穿孔机详情K0403张晓燕_01【定稿】外贸DK-908D穿孔机详情K0403张晓燕_02【定稿】外贸DK-908D穿孔机详情K0403张晓燕_03【定稿】外贸DK-908D穿孔机详情K0403张晓燕_04【定稿】外贸DK-908D穿孔机详情K0403张晓燕_05
