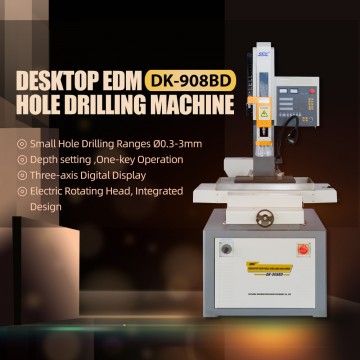

Desktop EDM DK-908BD 0.3-3mm Deep Hole Drilling Machine
Desktop EDM DK-908BD 0.3-3mm Deep Hole Drilling Machine, Depth Setting Function One-key Operation, Three-axis Digital Display

Desktop EDM DK-908BD 0.3-3mm Deep Hole Drilling Machine

  • Electrode Diameter Range 0.3-3mm
  • W Axis/Spindle Head Travel 250mm
  • Z Axis/Spindle Travel 380mm
  • Spindle Adjustment Speed ≤1500 mm/min
  • Rotating Speed 0-200rpm
  • Working Table Size 440*320mm
  • X*Y Travel 400*300mm
  • Max Distance from Guide to Working Table ≤300
  • Processing Current ≤30A
  • Input Power ≤4.0KW
  • Power Source 380V/50Hz
  • Digital Display 3-Axis
  • Working Fluide Supply Method Shallow Gap
  • Working Fluide Supply Device Electric Pump
  • Working Fluide Supply Pressure ≤8MPa
  • Max Working Load ≤300KG
  • Overall Dimension(W*L*H) 1000*1000*2000mm
  • Overall Weight 650kg

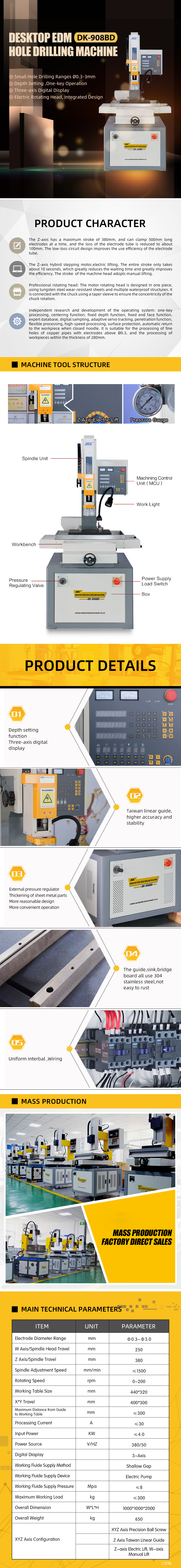

Features and Advantages:

1.Small Hole Drill Ranges 0.3-3mm

2.Depth Setting Function, One-key Operation. Three-axis Digital Display

3.Electric Rotating Head, Integrated Design

4.Z Axis/Spindle Travel: 380mm; Working Table Size:440*320mm

5.Taiwan Linear Guide, Higher Accuracy and Stability

6.External Pressure Regulator, Thickening of Sheet Metal Parts, More Reasonable Design, More Convenient Operation

7.The Guide, Sink, Bridge Board all Use 304 Stainless Steel, Not Easy to Rust

8.Mass Prduction, Factory Direct Sale, Low Cost


Packing and Shipping:

1.Wooden Box Packing

2.Shipping by Sea 45-60 Days

3.DDP Shipping Terms, Door to Door Delivery Service, All Cost Included.
