JPT MOPA M7 Fiber Laser Engraver Laser Marking Machine 20W/30W/60W
MOPA Fiber Laser Engraver has a wide range repetition frequency and pulse duration to make it good at black and color marking on stainless steel, black marking on anodised aluminum,etc.

JPT MOPA M7 Fiber Laser Engraver Laser Marking Machine 20W/30W/60W

  • Laser Source JPT MOPA M7
  • Laser Power 20W/30W/60W Optional
  • Repetition Frequency 1~4000Khz
  • Pulse Duration 2-350ns@20W/30W; 2-500ns@60W.
  • Lens(Marking Area) 110*110/150*150/175*175mm
  • Output power adjustment range 10%-100%
  • Marking Speed 7m/s
  • Engraving Depth ≤1.0mm
  • Min. Line Width ≤0.01mm
  • Min. Character 0.2mm
  • Input Voltage 110V-240V/50-60Hz
  • Communication Mode for Automation TCP/IP, IO,RS232

Details

JPT MOPA M7 Fiber Laser Engraver Laser Marking Machine

Specification:

1. Laser Power: 20W/30W/60W Optional

2. Marking Area: 110*110mm/150*150mm/175*175mm/200*200mm/300*300mm optional

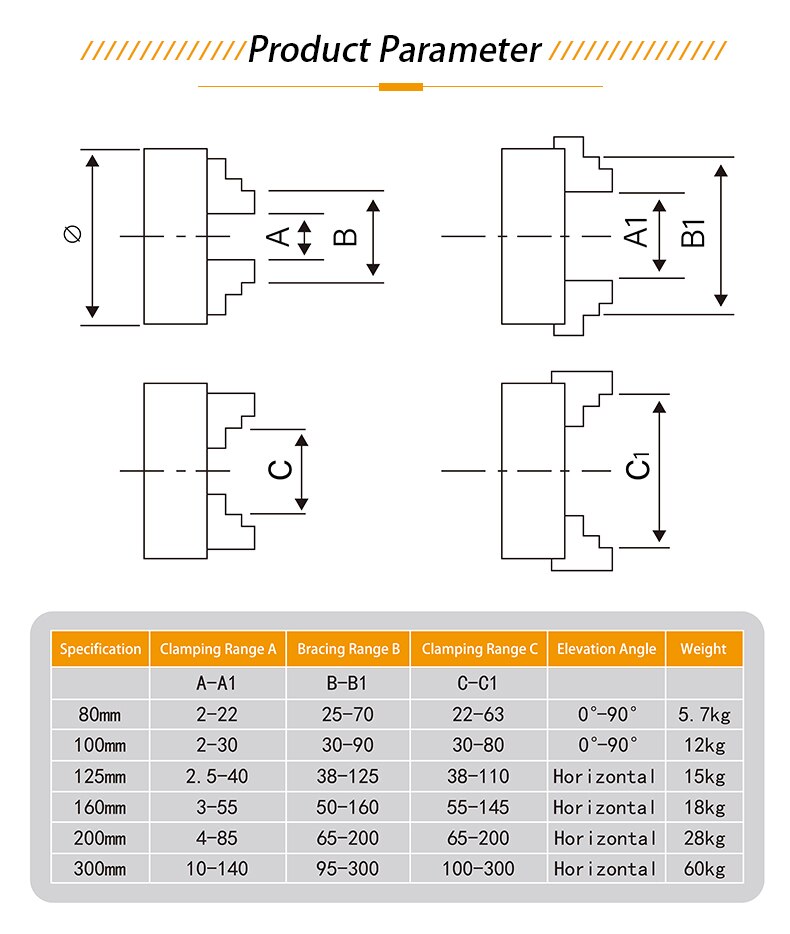

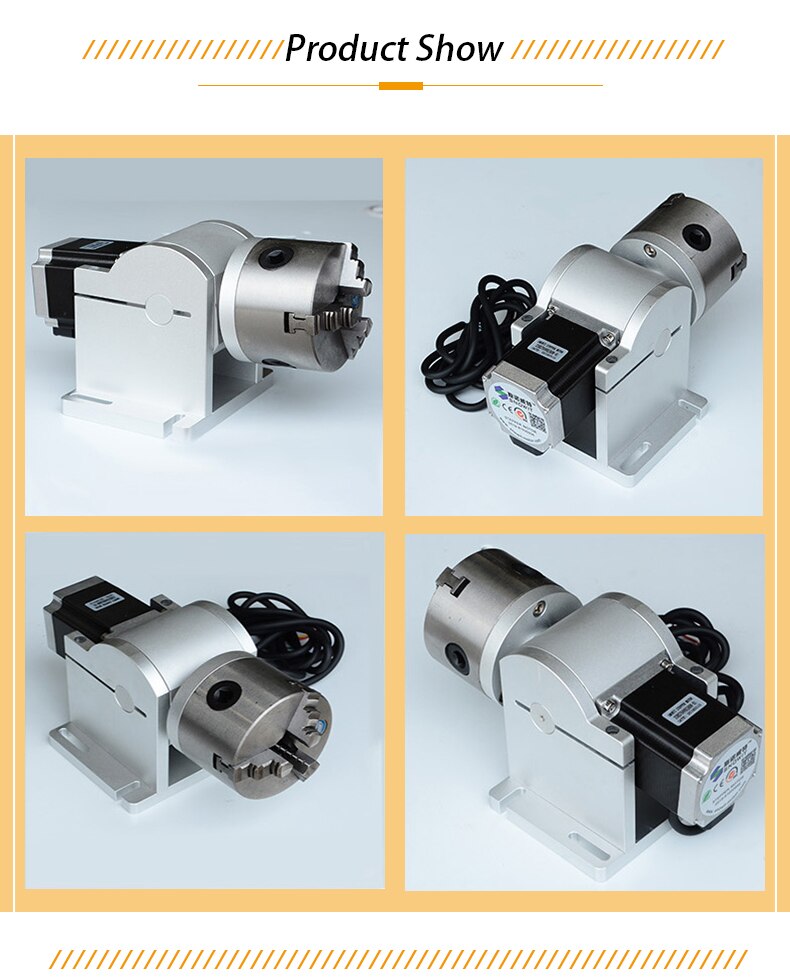

3. Rotary Axis: D80/100/125/160mm Optional

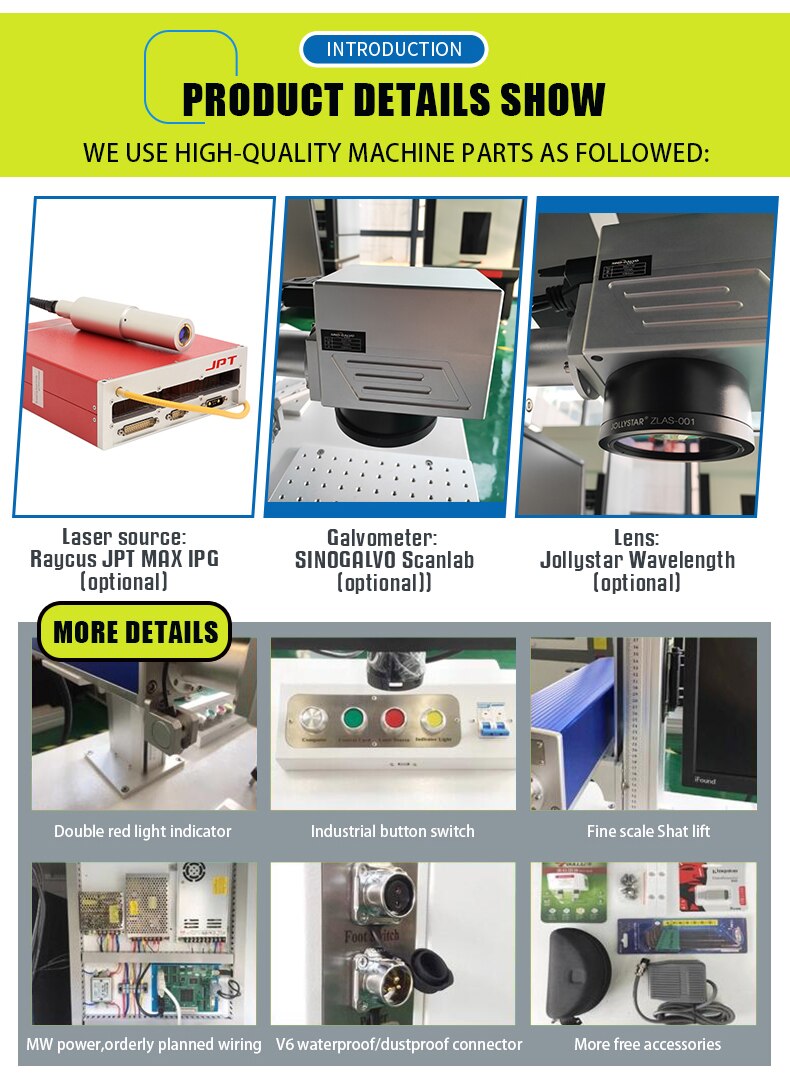

4. Laser Source: JPT MOPA M7; Software: EZCAD2. Support WIN7/10 System

5. Repetition Rate Frequency : 1-4000kHZ; Pulse Duration: 2-350ns

6. Marking on various metal like Aluminum, Stainless Steel, Brass, Copper,etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.

7. Imported laser scanning system makes the marking speed up to 7m/s; Re-position precision is 0.002mm; High-Rate of Electrical-Optical Conversion: up to 70%.

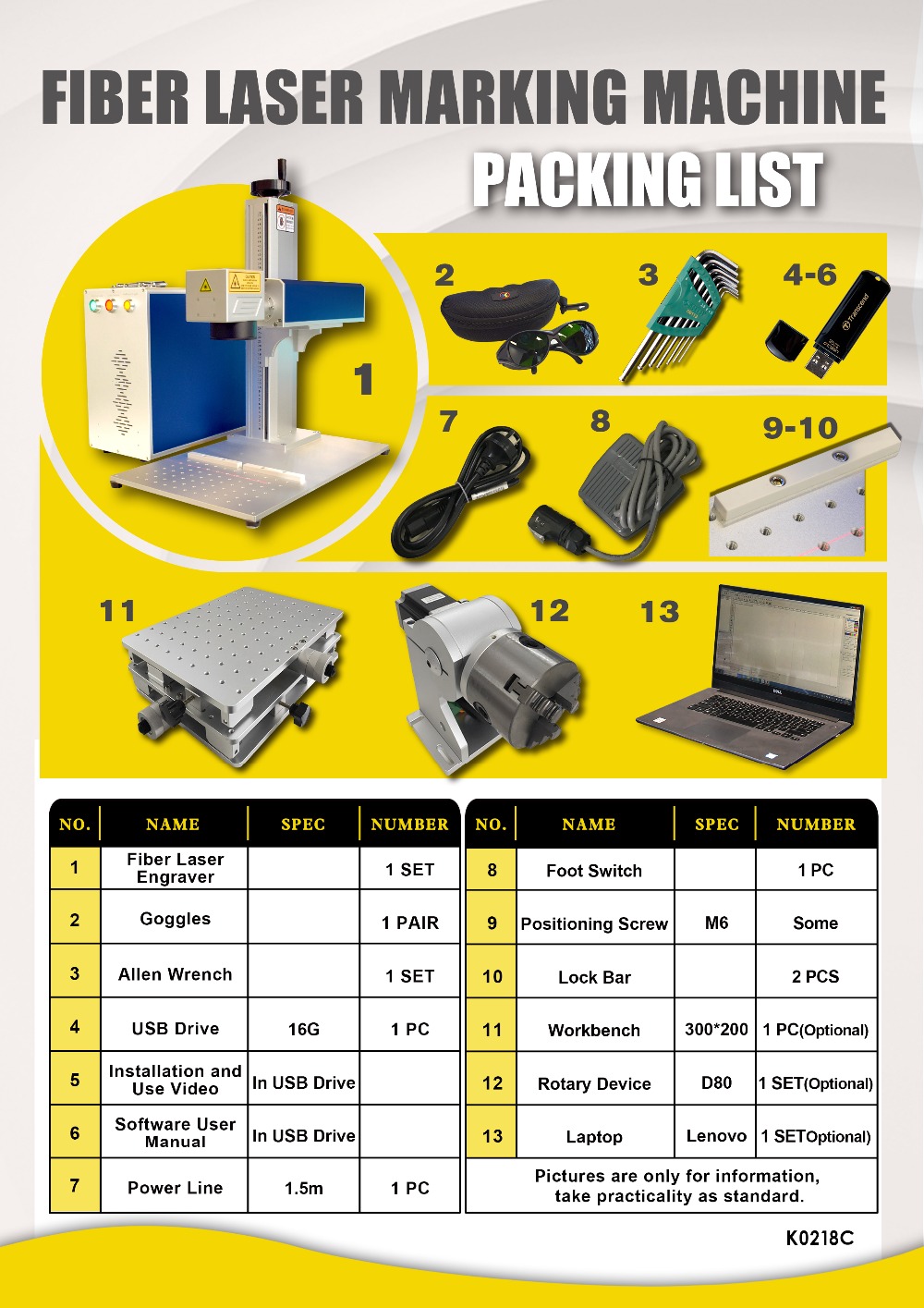

8. Two-Year Warranty. Offer customer and technical support. Easy Operation, English User Manual, VCD training video, software sending together with the machine

9. The function of marking software is powerful. The machine can be compatible with software files such as Coredraw, AutoCAD, Photoshop;PLT,PCX,DXF,BMP,etc supported.

10. The machine can directly use SHX, TTF fonts;Automatic encoding, printing serial number, batch number, date, barcode, QR code, automatic jump number, etc supported.

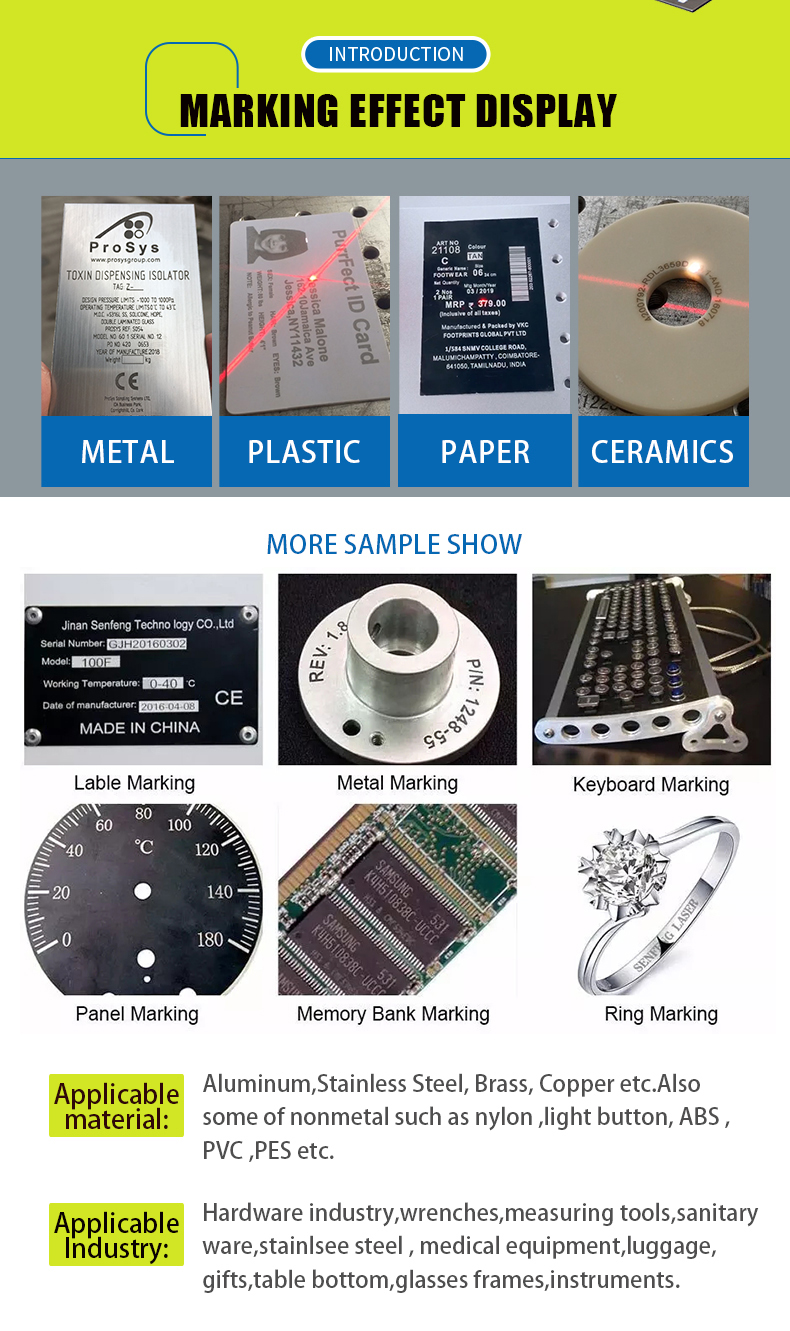

11. Applicable Material: Aluminum, Stainless Steel, Brass, Copper,etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.

12. Applicable Industry: Hardware industry, wrenches, measuring tools, sanitary ware, stainless steel, medical equipment, luggage, gifts, table bottom, glasses frames, instruments.

13. Application Advantage: Metal surface processing, peeling coating; Aluminum black marking; Semi-conductor&electronics industry applications; Large area engraving; Excellent marking effect on plastic or other sensitive material; Black marking on stainless steel. Stainless Steel Color Marking.

【详情】JPT MOPA M7 K0319王浩 (1)【详情】JPT MOPA M7 K0319王浩 (3)【详情】JPT MOPA M7 K0319王浩 (4)【详情】JPT MOPA M7 K0319王浩 (5)【待审】英文激光打标机旋转头配件详情K0113张晓燕_05【待审】英文激光打标机旋转头配件详情K0113张晓燕_04
