Fiber Laser Engraver Fiber Laser Marking Machine 20W/30W/50W

Fiber Laser Engraver Fiber Laser Marking Machine 20W/30W/50W

  • Laser Source RAYCUS as Defalut; JPT/IPG optional
  • Laser Power 20W/30W/50W Optional
  • Lens(Marking Area) 110*110/150*150/175*175mm
  • Output power adjustment range 10%-100%
  • Marking Speed 7m/s
  • Engraving Depth ≤1mm
  • Min. Line Width ≤0.01mm
  • Min. Character 0.2mm
  • Input Voltage 110V-240V/50-60Hz
  • Communication Mode for Automation TCP/IP, IO,RS232
  • Applicable OS WIN7/8/10

Details

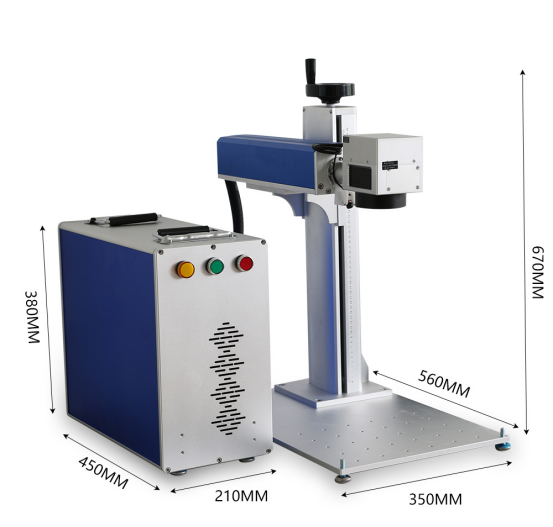

Fiber Laser Marking Machine Fiber Laser Engraver Laser Marker

Specification:

1. Laser Power: 20W/30W/50W Optional

2. Marking Area: 110*110mm/150*150mm/175*175mm optional

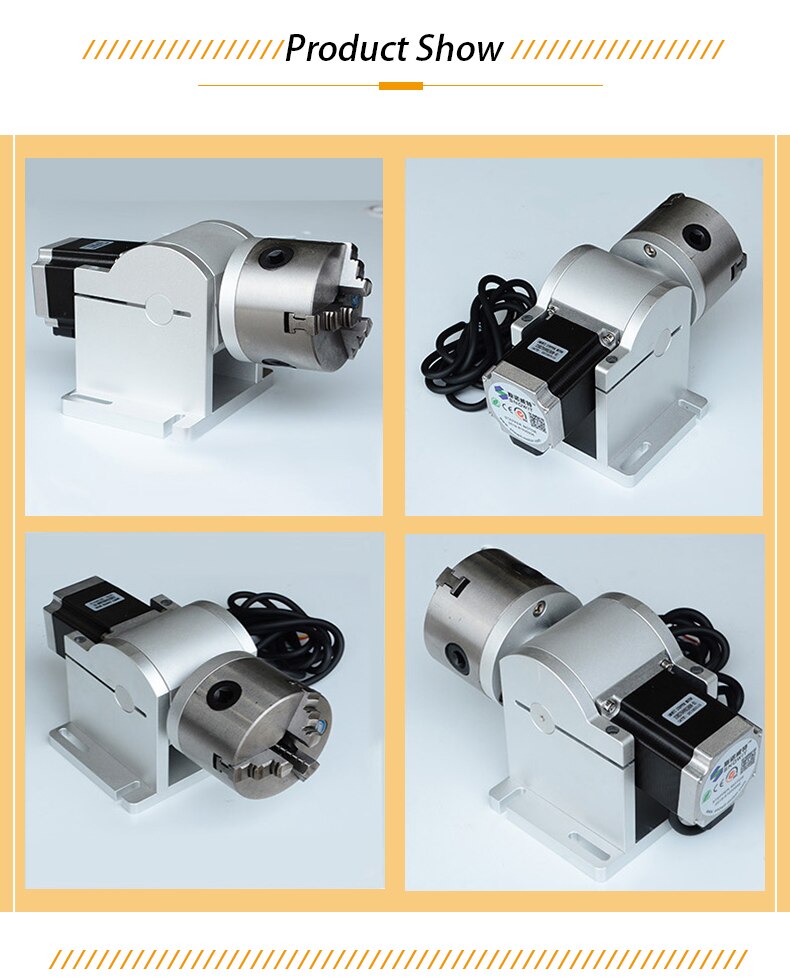

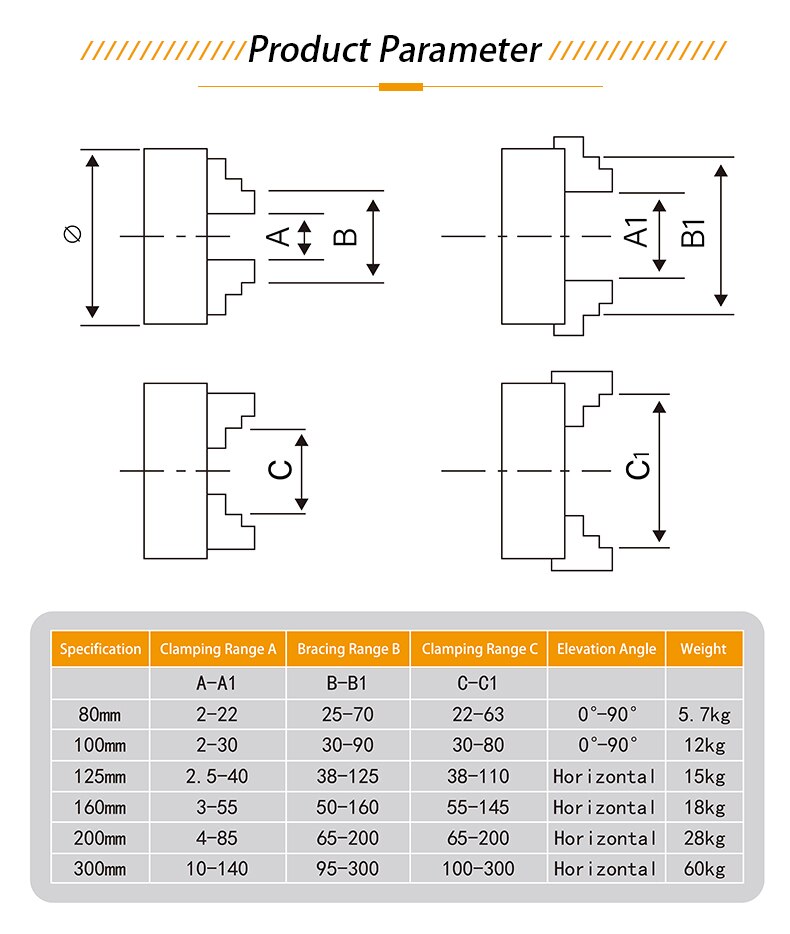

3. Rotary Axis D80/100/125/160mm Optional

4. Default Laser Source: RAYCUS. JPT/IPG Optional. Software: EZCAD2. Support WIN7/8/10 System

5. Marking on various metal like Aluminum, Stainless Steel, Brass, Copper,etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.

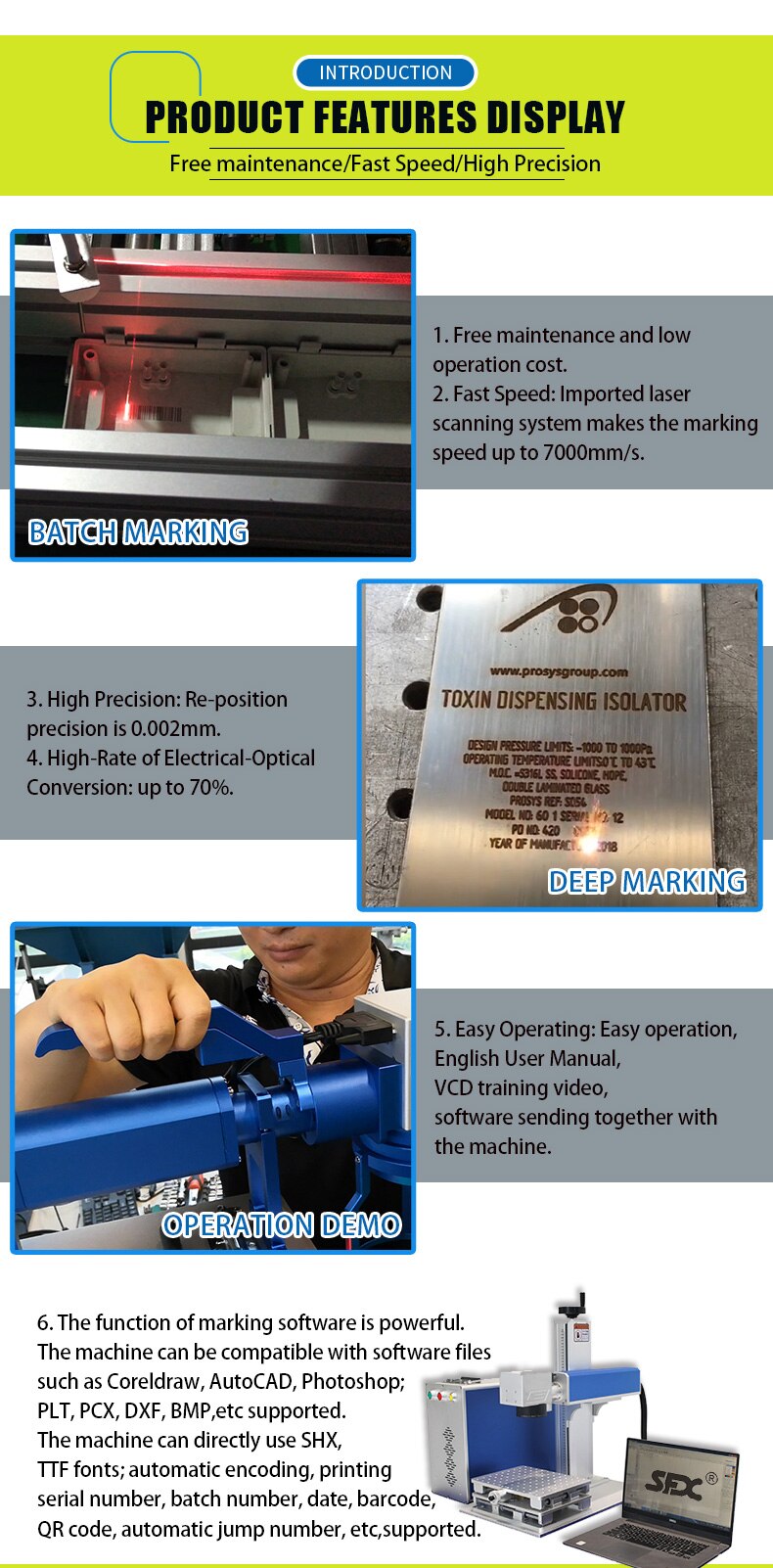

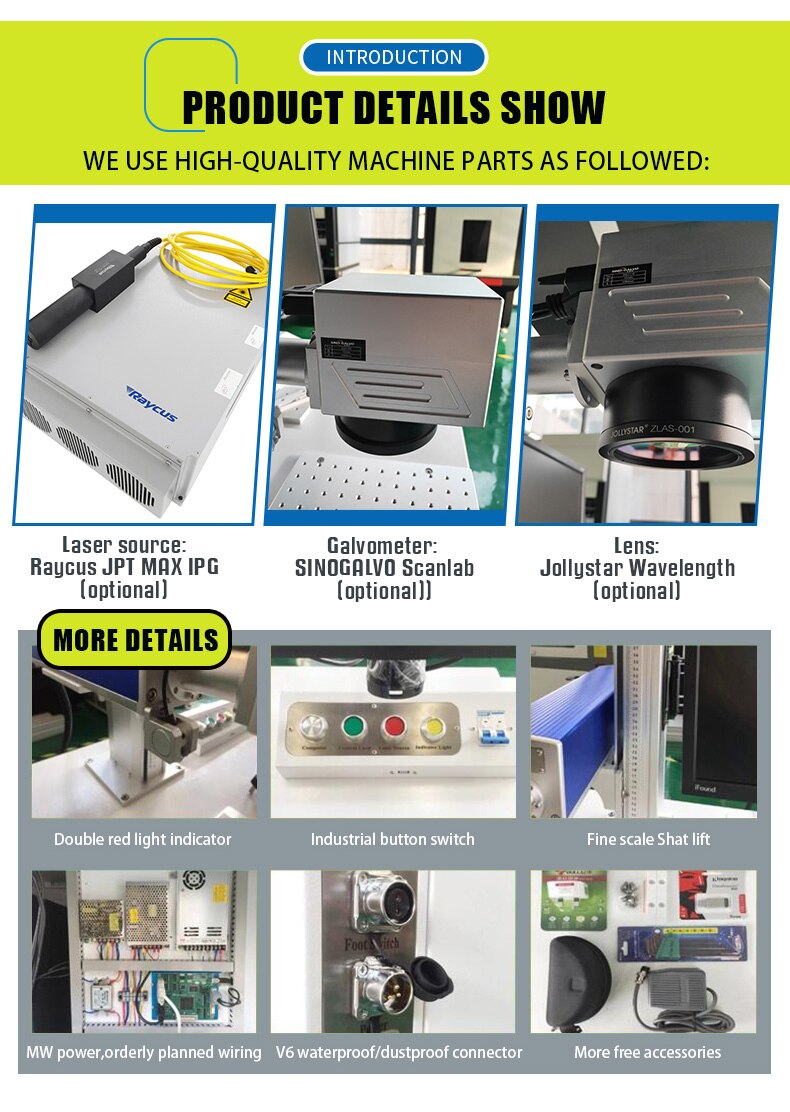

6. Imported laser scanning system makes the marking speed up to 7m/s; Re-position precision is 0.002mm; High-Rate of Electrical-Optical Conversion: up to 70%.

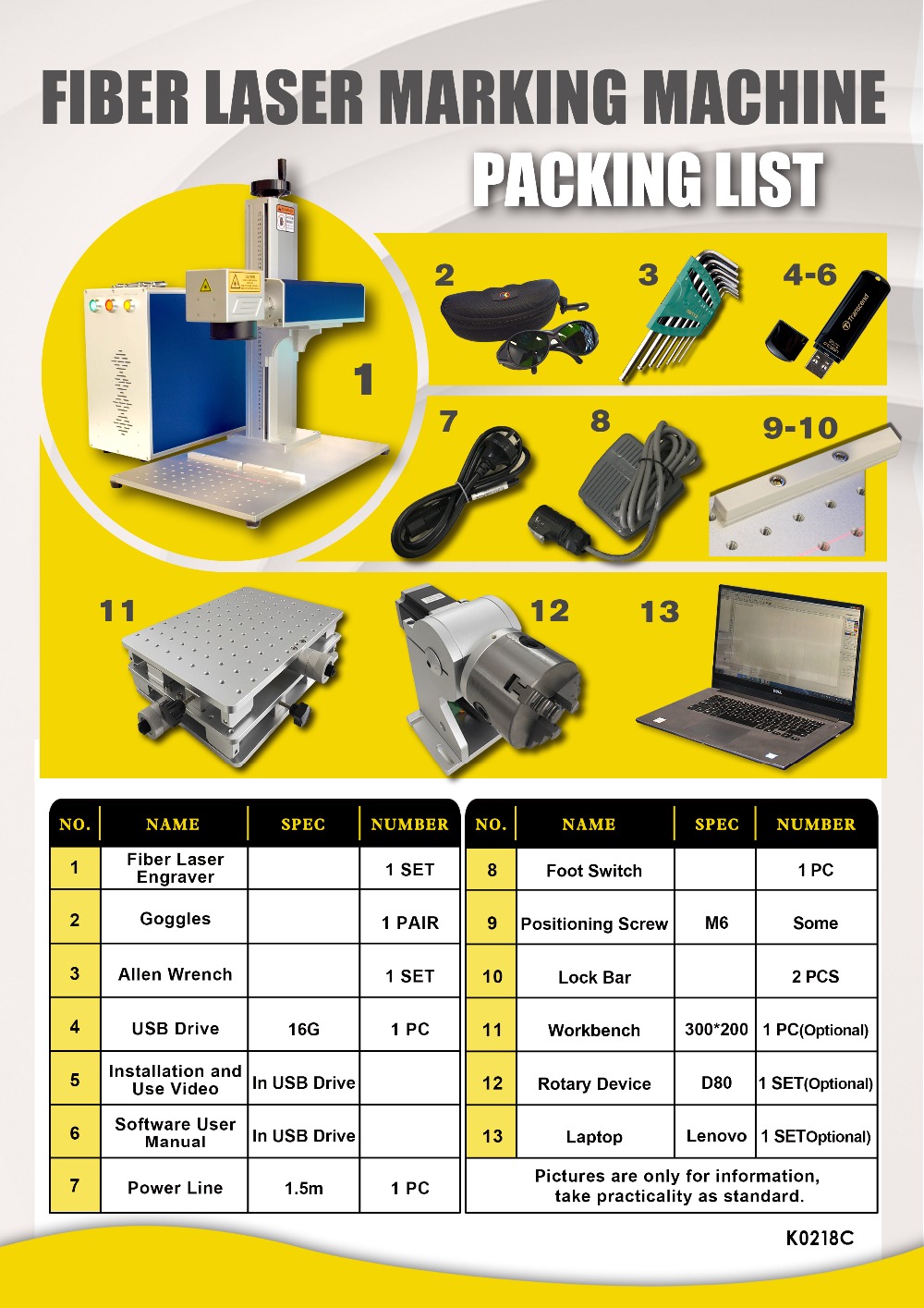

7. Two-Year Warranty. Offer customer and technical support. Easy Operation, English User Manual, VCD training video, software sending together with the machine

8. The function of marking software is powerful. The machine can be compatible with software files such as Coredraw, AutoCAD, Photoshop;PLT,PCX,DXF,BMP,etc supported.

9. The machine can directly use SHX, TTF fonts;Automatic encoding, printing serial number, batch number, date, barcode, QR code, automatic jump number, etc supported.

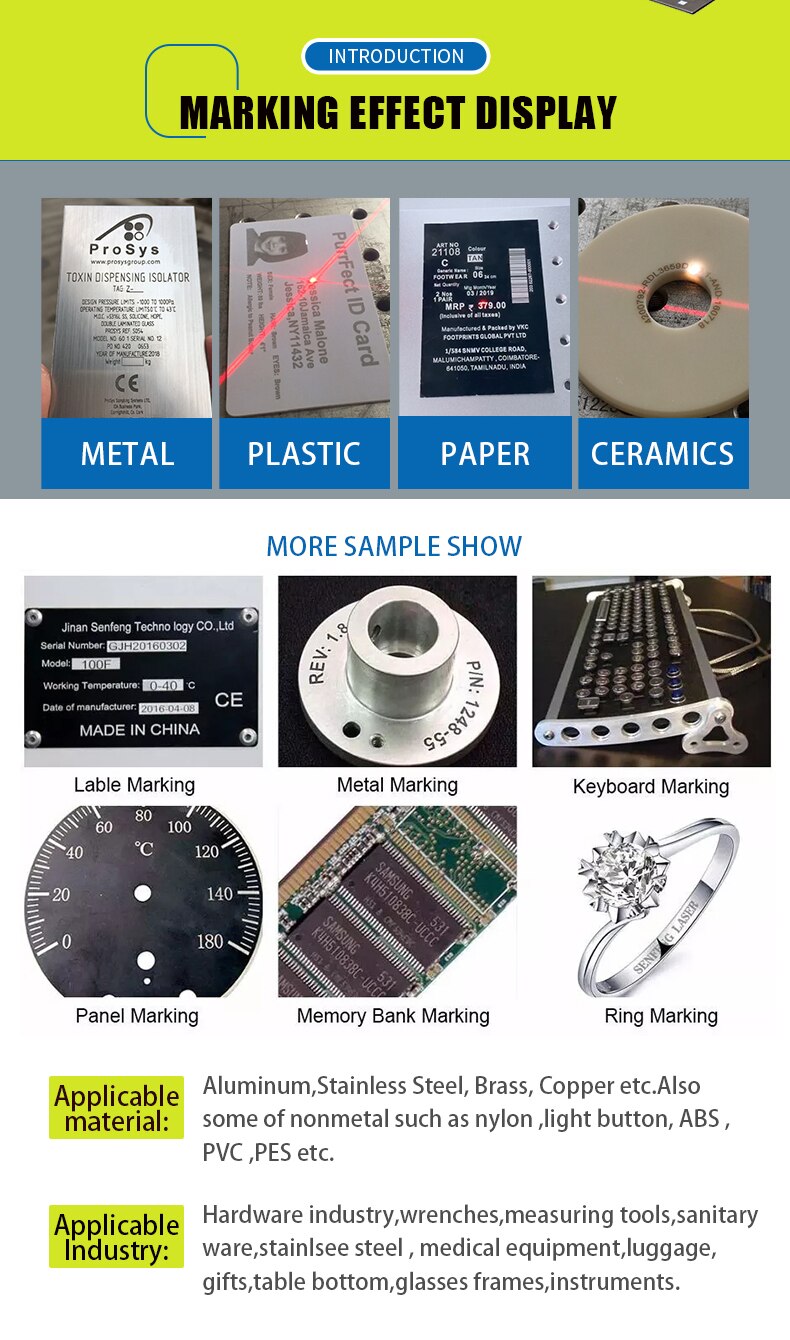

10. Applicable Material: Aluminum, Stainless Steel, Brass, Copper,etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.

11. Applicable Industry: Hardware industry, wrenches, measuring tools, sanitary ware, stainless steel, medical equipment, luggage, gifts, table bottom, glasses frames, instruments.
