Portable EDM Drilling Machine MB-2000C Ø0.5-3mm
Portable EDM Driller Ø0.5-3mm.
Split Design and Easy to Carry, fits large or heavy workpiece processing.

Portable EDM Drilling Machine MB-2000C Ø0.5-3mm

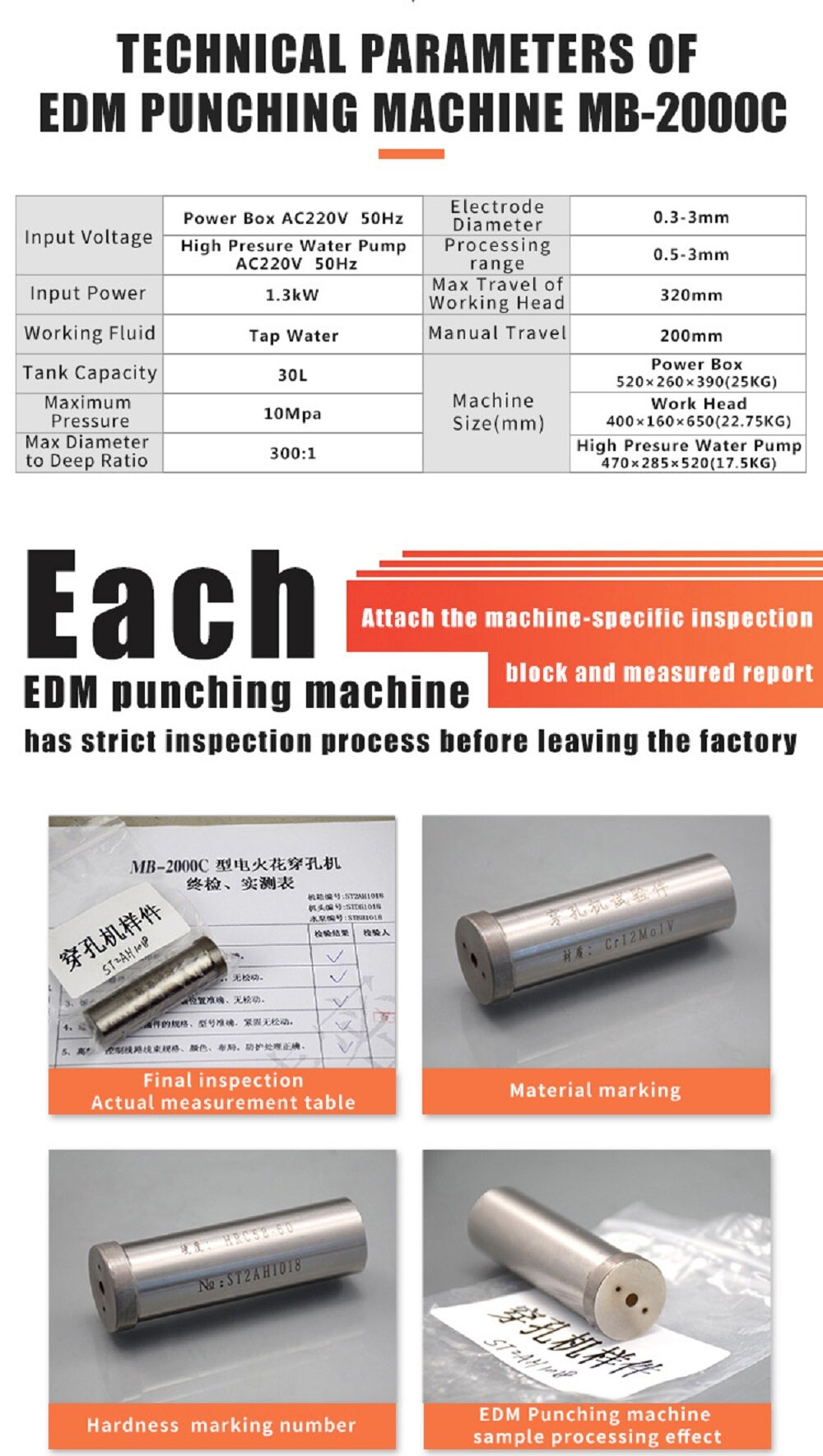

  • Rough Weight (kg) 75
  • Input Power (W) 1500
  • Maximum Processing Depth (mm) 300(Φ1)
  • Power Box(mm) L520×W260×H390(22kg)
  • Work Head L400×W160×H650 (22.75Kg)
  • Water Pump Size(mm) L470×W285×H580(17.5kg)
  • Power Box Input Voltage (V) AC220V 50Hz/AC110V 60Hz
  • Electrode Diameter(mm) 0.3-3
  • Spindle Servo Travel 320
  • Manual Travel (mm) 200

This Video will give a brief introduction of MB-2000C EDM Punching Machine. If you want more details,please feel free to leave us a message.


Portable EDM Drilling Machine 0.5-3mm Micro Hole Drilling

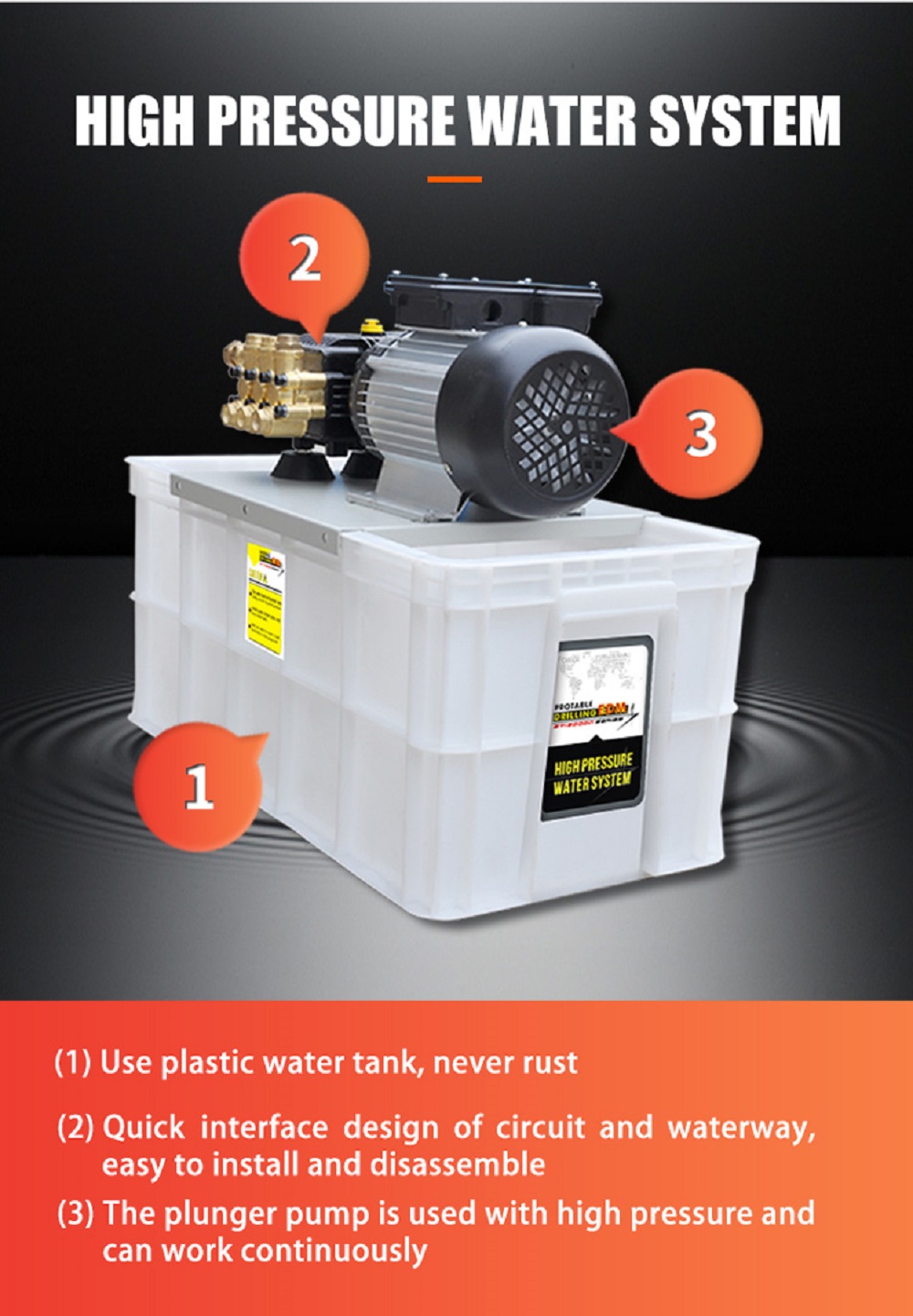

The MB-2000C EDM punching machine utilizes the principle of electric erosion to melt and corrode the metal section by generating electric sparks to achieve the purpose of perforating on the metal workpiece.The device using brass electrode tube as a tool electrode,using high-pressure water to cool and slag the processing point and it can process a deep hole between Φ0.5 and Φ3.0 mm on a metal workpiece of any size and shape.

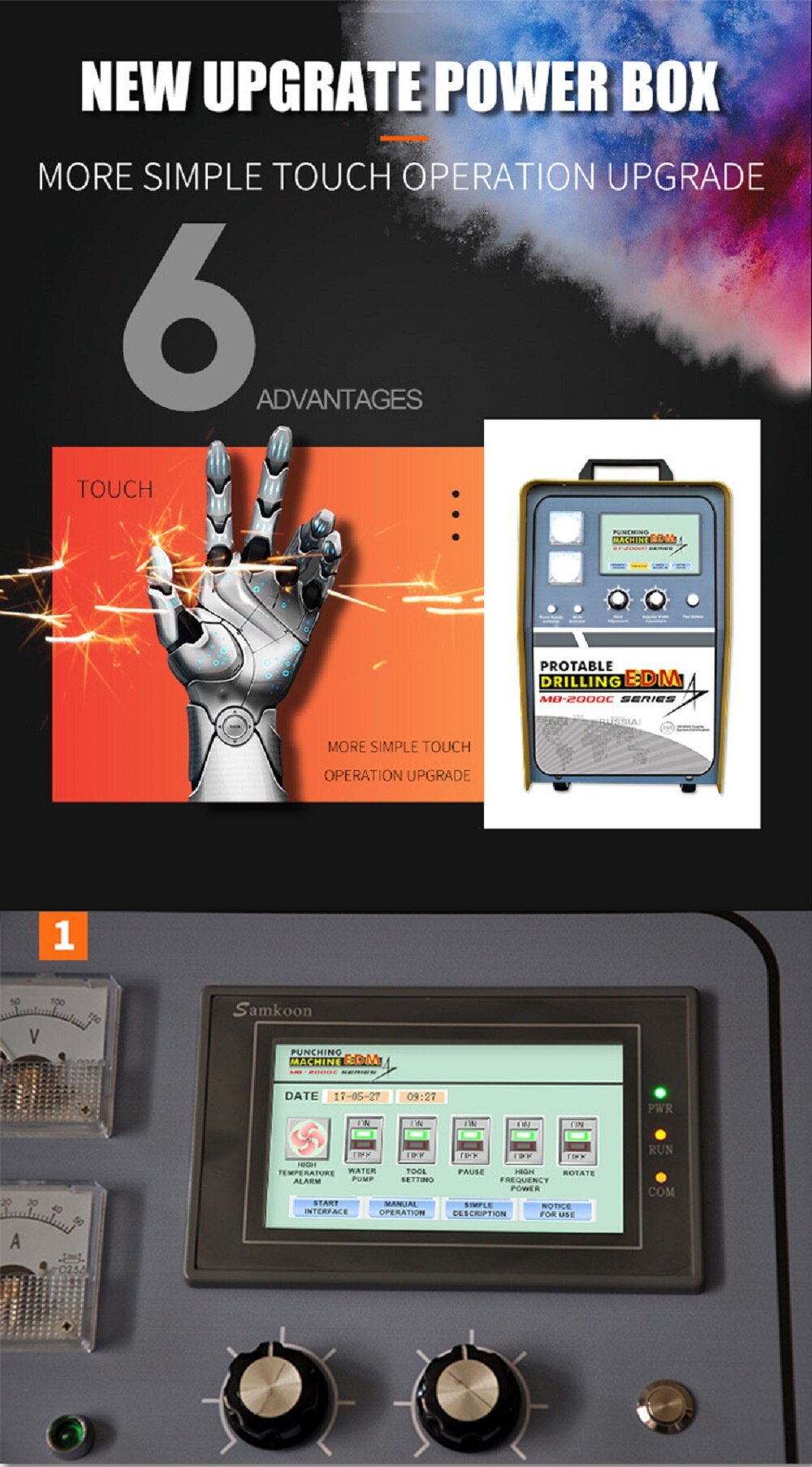

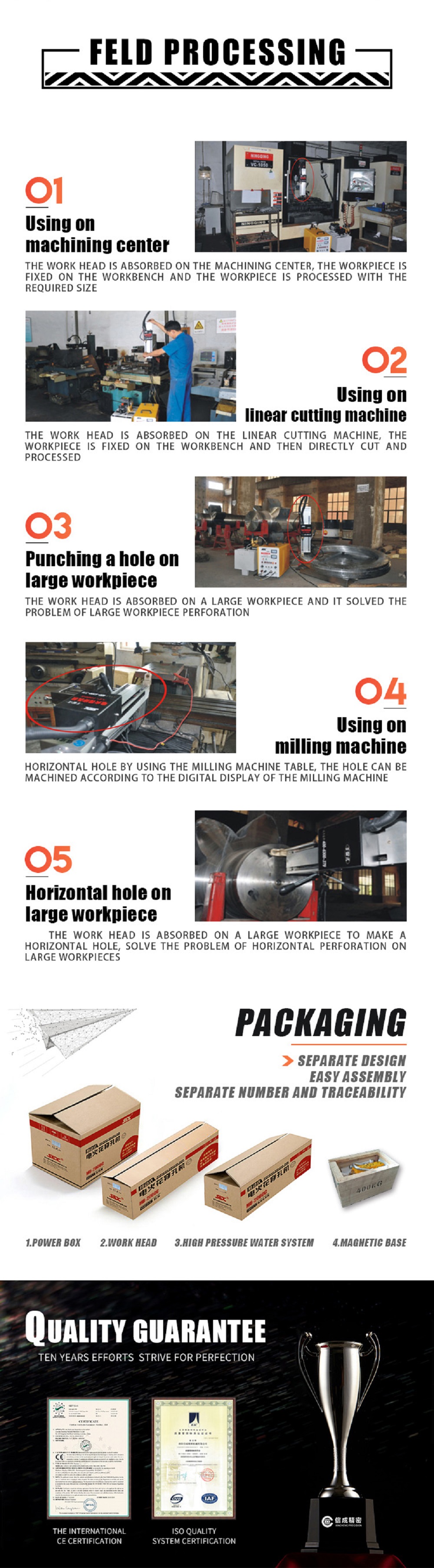

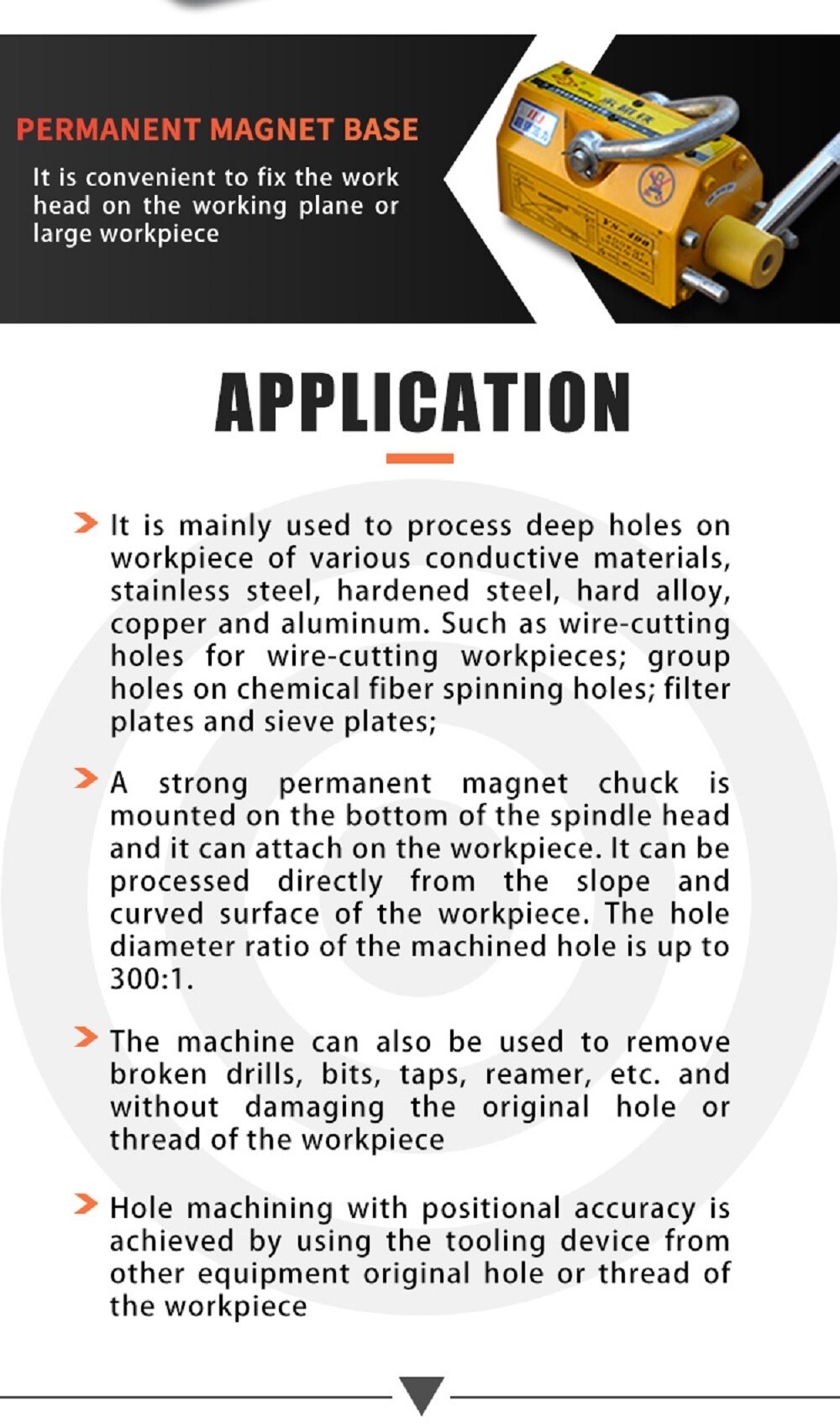

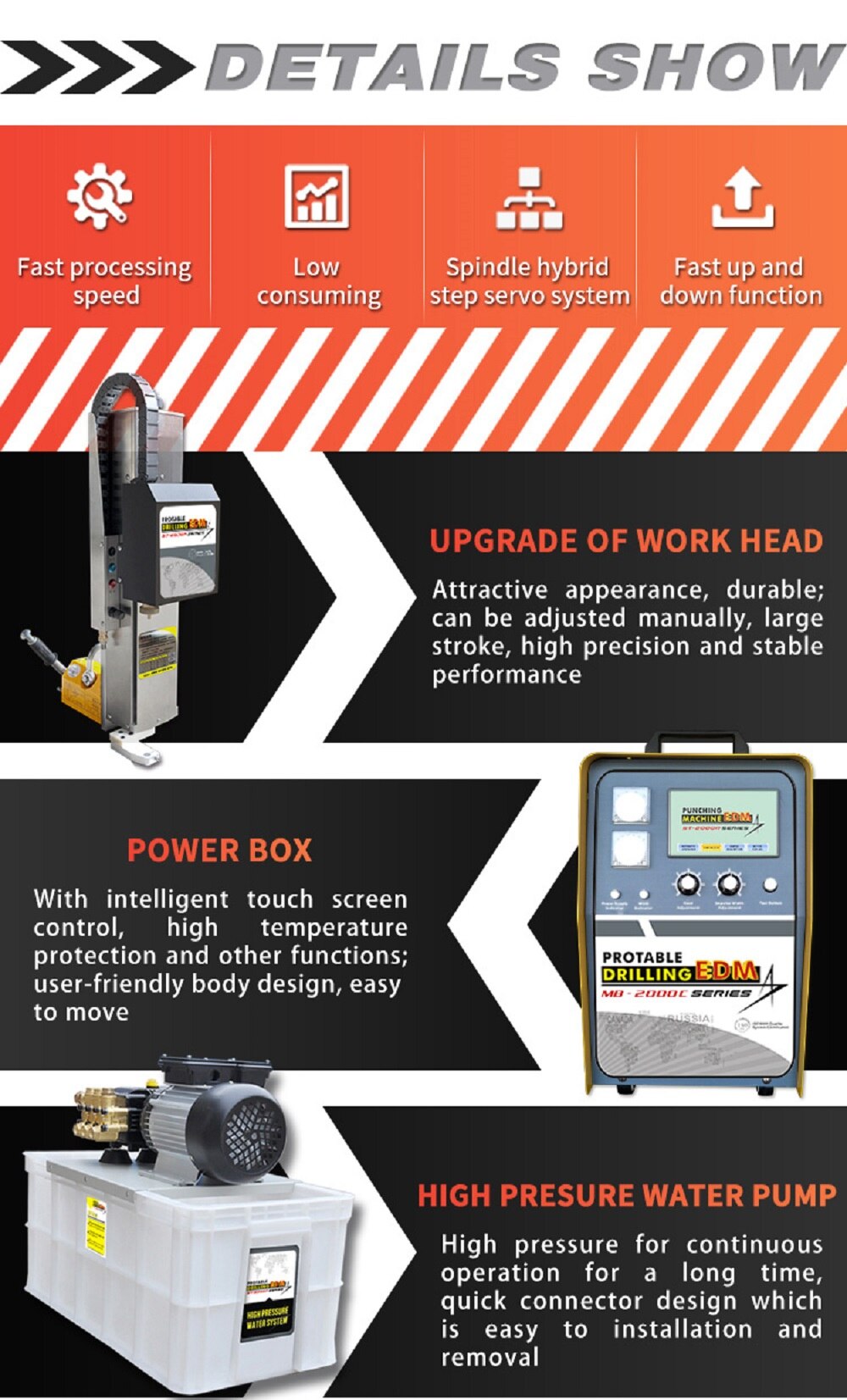

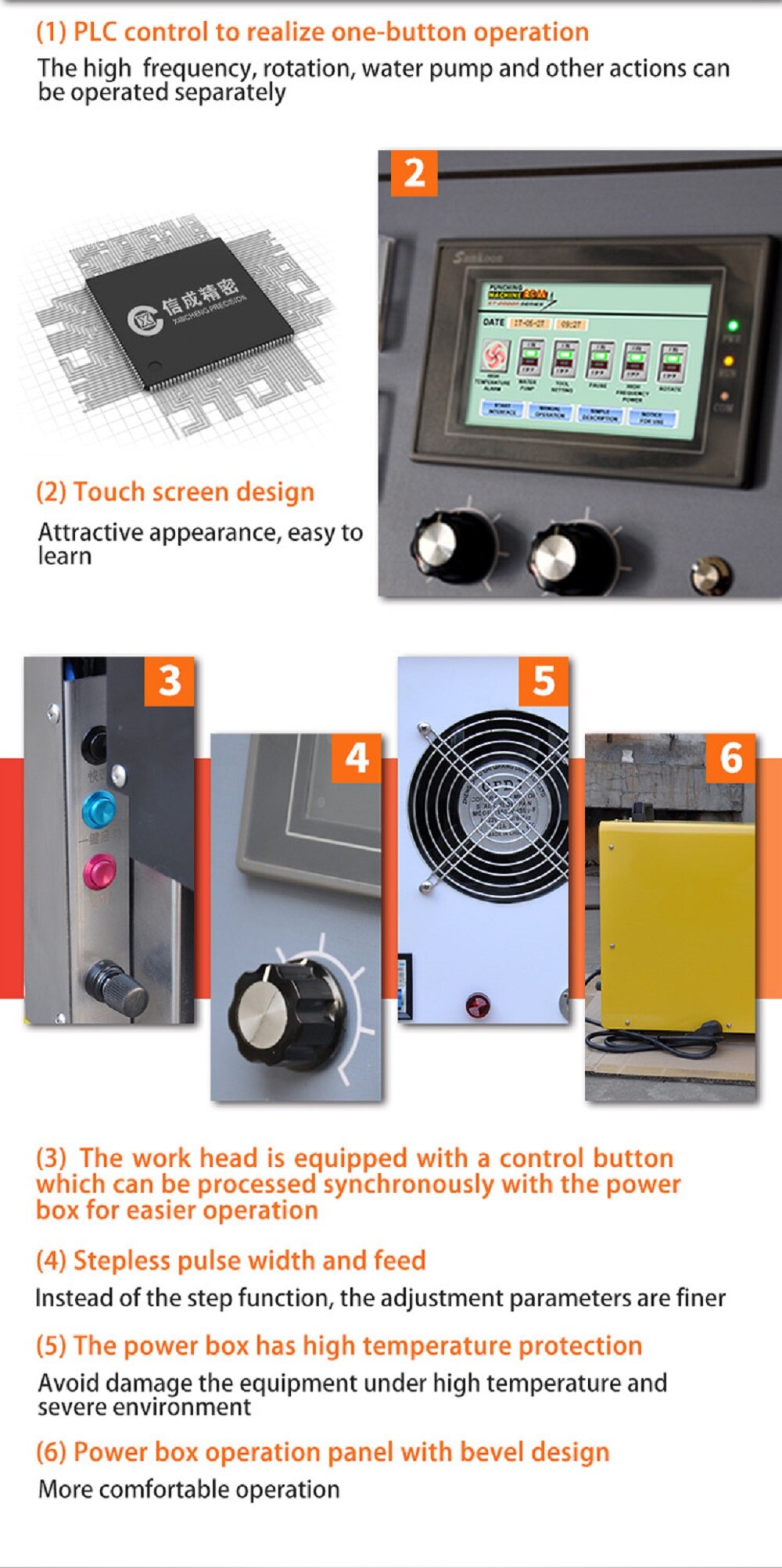

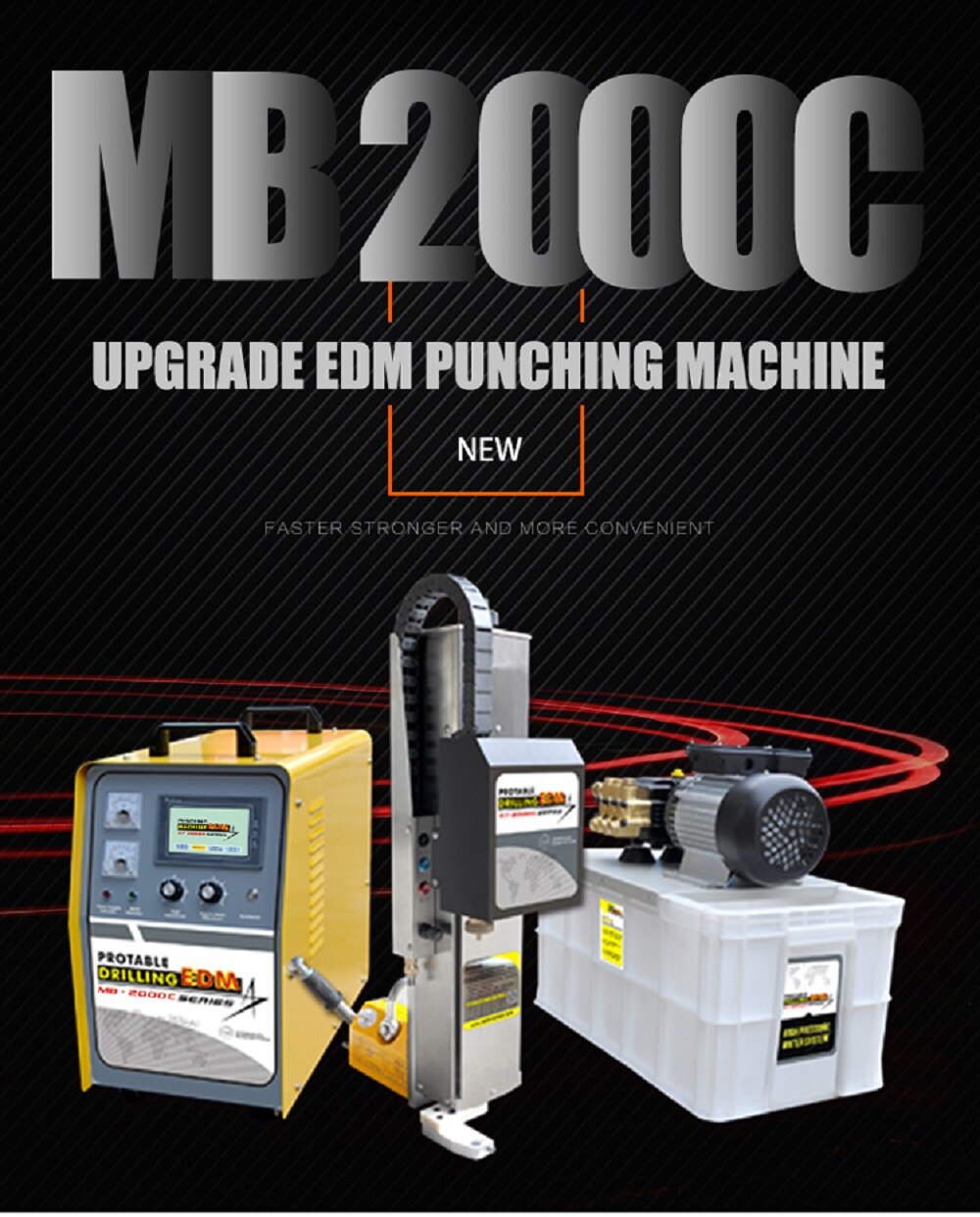

The device adopts a mobile chassis design, which is convenient for mobile use; a modular integrated circuit system is integrated in the chassis, thereby greatly reducing the volume of the original large-scale equipment; the touch screen control is simpler, convenient to use, stable and reliable;The portable magnetic base can be conveniently placed and fixed at any position of the workpiece for a variety of working conditions. It can be directly inserted into the hole from the inclined surface, curved surface and tapered surface, so that the perforating machine of this model can be applied more widely.It can also be used to remove the broken drills, taps, etc., without damaging the original hole threads.
