EDM-2000B
SFX 브랜드의 새로운 도착 모델 EDM-2000B의 새로운 모델.

EDM-2000B

  • 항목 EDM-2000B
  • 입력 전압 (V) AC220V / 110V에 50Hz의
  • 출력 전압 (V) DC 75-80V
  • 전극 직경 (mm) 0.8-10
  • 작업 헤드의 최대 여행 (mm) 70
  • 최대 처리 속도 (mm / 분) 1.5
  • 기계 크기 (L *의 W의 *의 H mm) 420 * 220 * 370
  • 작업 헤드 크기 (L의 *의 W의 *의 H의 mm) DK8 300 * 50 * 50
  • 순 중량 (kg) 19

세부

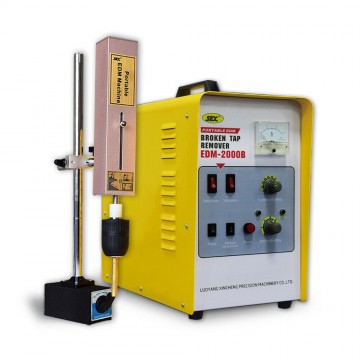

EDM-2000B Portable EDM Broken Tap Remover (Depth Setting)

Features:

1. Input power 2000W

2. Light, small, portable, and compact design allows the EDM-2000B 탭 리무버 to be moved and used anywhere in the shop.

3. High speed and efficiency at a low cost.

4. Simple set up and operation allows easy removal of taps anywhere.

5. Power source choices 110V/220V,50/60Hz

6. Dielectric Machine uses ordinary tap water as dielectric liquid.

7. Electrodes Uses any brass rod or tube as an electrode.(ø1,ø2,ø3,ø4,ø5,ø6,ø8,ø9,ø10)

8. Small size and magnetic base allow machining even on large work pieces.

9. Removes taps with no damage or stress to the work piece.

10. Additional applications include cutting tungsten carbide or any other conductive material

Machining Functions:

1. Auto Feed

2. Depth setting (stops at a specific depth)

3. Selectable arcing timer

4. Auto retract

5. Swiveling work head

6. Alarm messages: depth arrival, arcing, over-temp.

7. Manual Up& Down for Positioning.

8. One-key Start&Stop
