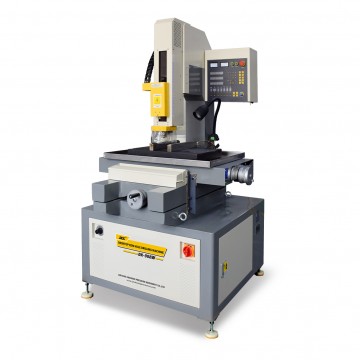

DK-908W EDM Drilling Machine Ø0.15-3mm for Super Hard Alloy and Metal
Fits Ø0.15-3mm super hard alloy and special metal processing. Depth setting, one-key operation.

DK-908W EDM Drilling Machine Ø0.15-3mm for Super Hard Alloy and Metal

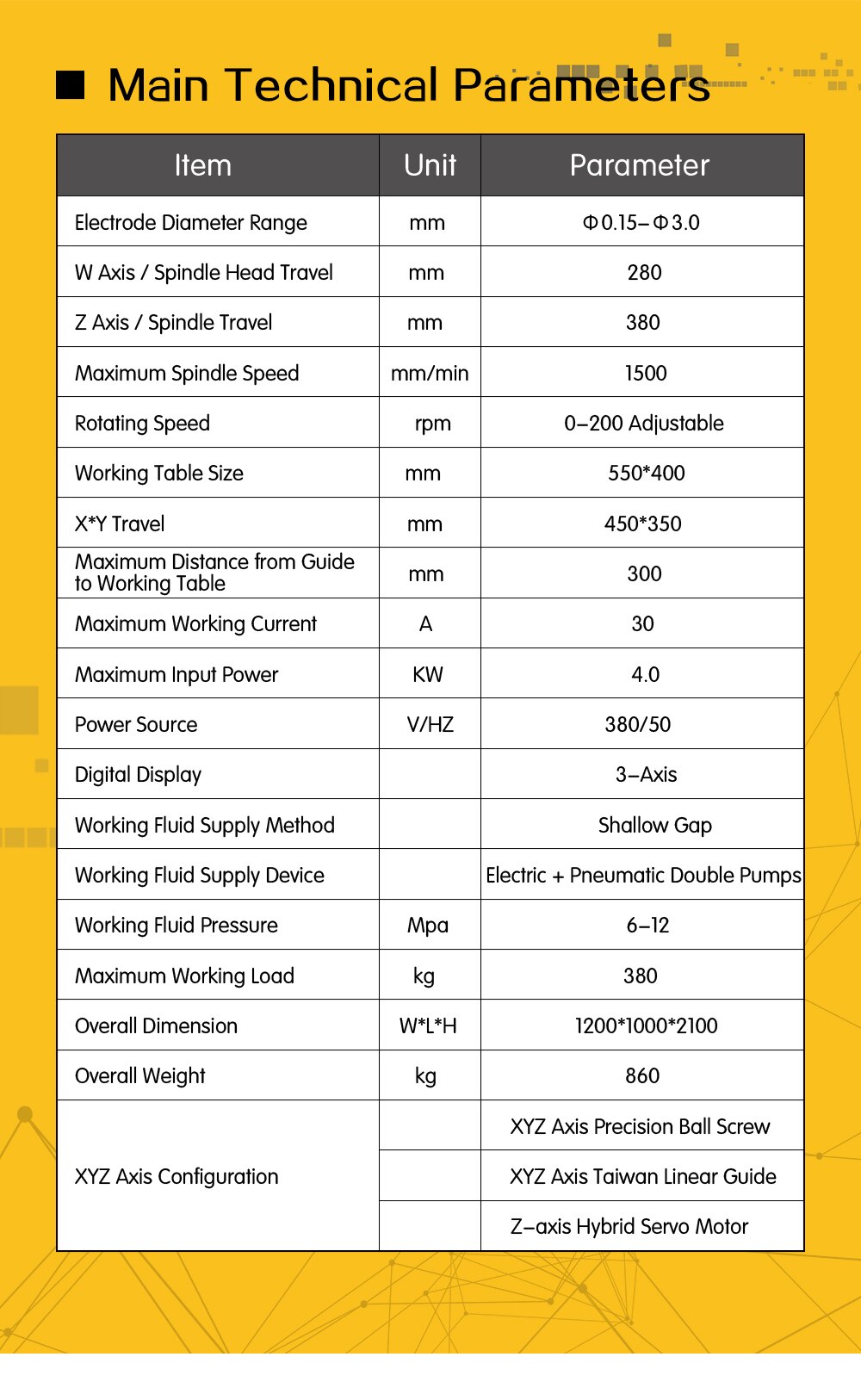

  • Electrode Diameter Range Φ0.15-3mm(Ø0.15-6mm Cusomizable)
  • W Axis Travel 280mm
  • Z Axis Travel 380mm
  • Max. Spindle Lifting Speed 380mm
  • Rotaing Speed 0-200rpm adjustable
  • Worktable Size 550*400mm
  • X*Y Travel 450*350mm
  • Max. Distance between Guide and Worktable 300mm
  • Max. Work Current 30A
  • Max. Input Power 4000W
  • Input Voltage 380V/50Hz; 240V/60Hz
  • Max. Load 380Kg
  • Overrall Dimensiton 1200*1000*2100mm
  • N.W 860Kg

Details

DK-908W EDM Drilling Machine Ø0.15-3mm for Super Hard Alloy and Metal

Superior Features:

1. Ø0.15-3mm Precision Processing (Ø0.15-6mm Customizable)

2. Tungsten Steel, Aluminum, AK80 and other super hard alloy and metal Processing.

3. One-Key Processing.

4. Depth Setting.

5. End Face Positioning.

6. Expert DataBase for Different Materials.

7. Digital Sampling Function.

8. Adaptive Servo Tracking System.

9. Drill Through Function.

10. Flexible Machining&High Speed Machining Mode.

11. Auto Retract when Processing Finished.

【定稿】外贸DK-908W穿孔机详情K0403张晓燕_01【定稿】外贸DK-908W穿孔机详情K0403张晓燕_02【定稿】外贸DK-908W穿孔机详情K0403张晓燕_03【定稿】外贸DK-908W穿孔机详情K0403张晓燕_04【定稿】外贸DK-908W穿孔机详情K0403张晓燕_05
